N-D Bresenham: Cython, and why other libraries disagree

_bresenham_nd (compiled locally from bresenham_nd_local/_bresenham.pyx) is the N-D form of scikit-image’s integer Bresenham. In 2-D it matches _line bit for bit. It does not always match ITK’s BresenhamLine or Zingl’s published plotLine3d.

This notebook settles why. The pixel counts agree (Chebyshev length); the paths diverge only on ties, and each library’s ties come from a different place in the arithmetic.

Coordinates are in array order: the first index runs down / along axis 0.

import itertools
import subprocess
import sys
import time
from pathlib import Path

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Rectangle
from matplotlib.colors import ListedColormap

# Subject under test: local Cython module (no worktree / _skimage2 needed).
import pyximport

def _find_root():
    """Directory holding `bresenham_nd_local`, whatever the working dir is."""
    for base in (Path.cwd(), *Path.cwd().parents):
        for candidate in (base, base / "notebooks"):
            if (candidate / "bresenham_nd_local" / "_bresenham.pyx").is_file():
                return candidate
    raise FileNotFoundError(
        "cannot find bresenham_nd_local/_bresenham.pyx; run this notebook "
        "from a checkout of the skimage-workbooks repository"
    )


_ROOT = _find_root()
if str(_ROOT) not in sys.path:
    sys.path.insert(0, str(_ROOT))

pyximport.install(
    setup_args={"include_dirs": [np.get_include()]},
    language_level=3,
)
from bresenham_nd_local._bresenham import _line, _bresenham_nd

# Slots 1 to 3 of the reference categorical palette.
C_OURS = "#2a78d6"
C_OTHER = "#eb6834"
C_BOTH = "#c9c8c1"
C_OFF = "#f2f1ec"
INK, MUTED, GRID = "#0b0b0b", "#52514e", "#dedcd5"

plt.rcParams.update(
    {"figure.dpi": 110, "font.size": 9, "axes.titlesize": 9,
     "axes.titlecolor": MUTED, "figure.facecolor": "white"}
)

def ours(start, stop):
    """Pixels from `_bresenham_nd`, as a list of tuples."""
    coords = _bresenham_nd(
        np.asarray(start, dtype=np.intp), np.asarray(stop, dtype=np.intp)
    )
    return [tuple(int(v) for v in pt) for pt in coords.T]


def sk_line(start, stop):
    rr, cc = _line(start[0], start[1], stop[0], stop[1])
    return list(zip(map(int, rr), map(int, cc)))


def zingl_nd(start, stop):
    """Zingl's `plotLine3d` style, generalised to any dimension.

    Sourced from http://members.chello.at/~easyfilter/bresenham.html. Same
    rule as `raster_geometry.bresenham_line`.
    """
    start, stop = list(start), list(stop)
    ndim = len(start)
    length = [abs(stop[i] - start[i]) for i in range(ndim)]
    longest = max(length) if length else 0
    if longest == 0:
        return [tuple(start)]
    err = [longest // 2] * ndim
    sign = [
        1 if stop[i] > start[i] else (-1 if stop[i] < start[i] else 0)
        for i in range(ndim)
    ]
    voxel = list(start)
    out = []
    count = longest
    while count >= 0:
        count -= 1
        for i in range(ndim):
            err[i] -= length[i]
        cur = tuple(voxel)
        for i in range(ndim):
            if err[i] < 0:
                err[i] += longest
                voxel[i] += sign[i]
        out.append(cur)
    return out


def itk_last_index(p0, p1):
    """The offset ITK walks after float normalisation (may differ from p1 - p0)."""
    p0, p1 = np.asarray(p0, int), np.asarray(p1, int)
    max_distance = max(abs(int(p0[i] - p1[i])) + 1 for i in range(len(p0)))
    direction = (p1 - p0).astype(float)
    norm = np.linalg.norm(direction)
    if norm == 0:
        return np.zeros(len(p0), dtype=int), max_distance + 1
    direction /= norm
    length = max_distance + 1
    last = np.array([int(length * direction[i]) for i in range(len(p0))], int)
    return last, length


def itk_line(p0, p1):
    """Port of ITK `BresenhamLine::BuildLine(Index, Index)` from v5.4.0.

    Builds a float direction, normalises it, runs the integer walker on that
    `LastIndex`, then stops when the true endpoint is reached.
    """
    p0 = tuple(int(x) for x in p0)
    p1 = tuple(int(x) for x in p1)
    last, length = itk_last_index(p0, p1)
    distances = np.abs(last)
    maxd = int(distances.max())
    main = int(np.argmax(distances))
    inc = 2 * distances
    ovr = np.where(last < 0, -1, 1).astype(int)
    maximal = np.full(len(p0), maxd, dtype=int)
    reduce = np.full(len(p0), 2 * maxd, dtype=int)
    accum = np.zeros(len(p0), dtype=int)
    cur = np.zeros(len(p0), dtype=int)
    pts = [p0]
    for _ in range(1, length):
        for i in range(len(p0)):
            if i == main:
                cur[i] += ovr[i]
            else:
                accum[i] += inc[i]
                if accum[i] >= maximal[i]:
                    cur[i] += ovr[i]
                    accum[i] -= reduce[i]
        pt = tuple(p0[i] + int(cur[i]) for i in range(len(p0)))
        pts.append(pt)
        if pt == p1:
            break
    return pts


def pixel_axes(ax, shape, title=None):
    n0, n1 = shape
    ax.set_xlim(-0.5, n1 - 0.5)
    ax.set_ylim(n0 - 0.5, -0.5)
    ax.set_xticks(range(n1))
    ax.set_yticks(range(n0))
    ax.set_xticks(np.arange(n1 + 1) - 0.5, minor=True)
    ax.set_yticks(np.arange(n0 + 1) - 0.5, minor=True)
    ax.grid(which="minor", color=GRID, lw=0.8)
    ax.tick_params(which="both", length=0, labelsize=7, colors=MUTED)
    ax.set_aspect("equal")
    for spine in ax.spines.values():
        spine.set_visible(False)
    if title is not None:
        ax.set_title(title)
    return ax


def fill(ax, pixels, color):
    for i, j in pixels:
        ax.add_patch(
            Rectangle((j - 0.5, i - 0.5), 1, 1, facecolor=color,
                      edgecolor="white", lw=1.0, zorder=1)
        )
    return ax

1. The problem, on one short segment¶

Take (0, 0) to (1, 4) in 2-D. Major length D = 4 is even. Both libraries draw five pixels; they disagree on which row sits at column 2.

p, q = (0, 0), (1, 4)
print("ours ", ours(p, q))
print("zingl", zingl_nd(p, q))
print("ITK  ", itk_line(p, q))
print("line ", sk_line(p, q))

ours  [(0, 0), (0, 1), (1, 2), (1, 3), (1, 4)]
zingl [(0, 0), (0, 1), (0, 2), (1, 3), (1, 4)]
ITK   [(0, 0), (0, 1), (0, 2), (1, 3), (1, 4)]
line  [(0, 0), (0, 1), (1, 2), (1, 3), (1, 4)]

fig, axes = plt.subplots(1, 3, figsize=(8.4, 2.2))
for ax, pix, color, name in (
    (axes[0], ours(p, q), C_OURS, "ours / skimage _line"),
    (axes[1], zingl_nd(p, q), C_OTHER, "Zingl style"),
    (axes[2], itk_line(p, q), C_OTHER, "ITK port"),
):
    pixel_axes(ax, (3, 6), name)
    fill(ax, pix, color)
    ax.plot([p[1], q[1]], [p[0], q[0]], color=INK, lw=1.2, zorder=3)

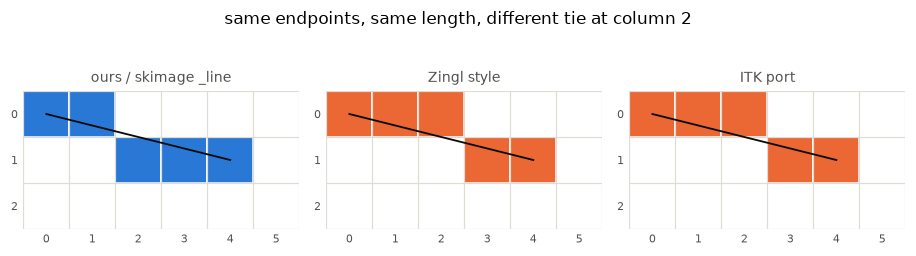

fig.suptitle("same endpoints, same length, different tie at column 2", y=1.05)
fig.tight_layout()

ours matches _line (steps early at the half). The Zingl rule steps late. ITK lands on the same pixels as Zingl here only because its float LastIndex is already distorted for this segment ((1, 5) instead of (1, 4)); when that distortion is absent, ITK matches ours instead (section 4).

2. Three algorithms, three midpoint tests¶

All three walk Chebyshev length D = max(|Δ|), advancing the major axis every step and deciding when each minor axis keeps up. They differ in the error state that implements the midpoint test.

Ours (scikit-image / notebook `bresenham_nd`)¶

For minor delta d and major length D:

error ← 2·d − D
each major step:
    if error ≥ 0:  step minor;  error ← error − 2·D
    error ← error + 2·d

The decision error ≥ 0 is the cleared form of y(k+1) ≥ m + 1/2 from on_lines.md: an exact half steps early. The major axis is not run through this test; it advances unconditionally.

Zingl `plotLine3d` (easyfilter)¶

From Zingl’s site. Every axis, including the major, shares one pattern:

err ← D // 2          # integer division
each step (D + 1 times, emitting the current voxel first):
    err ← err − d
    if err < 0:  step this axis;  err ← err + D

For the major axis d = D, so err goes from D//2 to D//2 − D < 0 every time and the major always steps — same cadence as ours, different bookkeeping.

The midpoint convention is the other way around: err < 0 after subtracting d, with initial D//2. When D is odd, D//2 truncates and the two rules align. When D is even, D//2 is an exact half and the < versus ≥ choices disagree on the tie.

ITK `BresenhamLine`¶

The integer core (once a LastIndex offset is chosen) is

accum ← 0
each major step:
    for each minor axis:
        accum ← accum + 2·distance
        if accum ≥ D:  step;  accum ← accum − 2·D

Measured below: when LastIndex equals the true integer p1 − p0, this emits exactly our pixels. So ITK’s integer walker is not a third tie-breaking rule — it matches scikit-image.

The Index→Index API does not feed it p1 − p0 directly. It builds a float direction, normalises it, and sets

LastIndex[i] = int( length · Direction[i] )
length = max_i(|p0[i] − p1[i]|) + 2     # max(|Δ|) + 1, plus one

Truncation after normalisation can make LastIndex ≠ p1 − p0. The walker then follows a different line in offset space and stops early when it hits the true endpoint. That is where ITK diverges from ours.

3. Mechanism A — Zingl: even major length¶

pairs_2d = [
    ((a, b), (c, d))
    for a, b, c, d in itertools.product(range(-3, 4), repeat=4)
    if (a, b) != (c, d)
]


def major_length(a, b):
    return max(abs(a[i] - b[i]) for i in range(len(a)))


even = [(a, b) for a, b in pairs_2d if major_length(a, b) % 2 == 0]
odd = [(a, b) for a, b in pairs_2d if major_length(a, b) % 2 == 1]

for label, group in (("D even", even), ("D odd", odd), ("all", pairs_2d)):
    ok = sum(ours(a, b) == zingl_nd(a, b) for a, b in group)
    print(f"ours vs Zingl-style, {label:>6}: {ok}/{len(group)} "
          f"({ok / len(group):.1%})")

ours vs Zingl-style, D even: 456/1152 (39.6%)
ours vs Zingl-style,  D odd: 1200/1200 (100.0%)
ours vs Zingl-style,    all: 1656/2352 (70.4%)

On this ±3 box, every disagreement with the Zingl rule has even D. With odd D the two sequences are identical.

# Trace the error that decides the first minor step for D = 4, d = 1.
D, d = 4, 1
print("ours:  initial error = 2d - D =", 2 * d - D,
      "  step on first decision?", (2 * d - D) >= 0)
print("zingl: initial err = D//2 =", D // 2)
print("       after err -= d:   ", D // 2 - d,
      "  step?", (D // 2 - d) < 0)

ours:  initial error = 2d - D = -2   step on first decision? False
zingl: initial err = D//2 = 2
       after err -= d:    1   step? False

For (0, 0) → (1, 4): D = 4, d = 1. Ours opens at error = 2·1 − 4 = −2 and only steps the minor axis once error has climbed to a non-negative value — which, with the ≥ 0 rule, puts the halfway column on the upper row. Zingl opens at err = 2, subtracts d to 1 (still non-negative), and does not step yet — so the halfway column stays on the lower row. The figure in section 1 is that single tie, drawn.

4. Mechanism B — ITK: float `LastIndex`¶

def last_matches_delta(a, b):
    last, _ = itk_last_index(a, b)
    return np.array_equal(last, np.asarray(b) - np.asarray(a))


matched = [(a, b) for a, b in pairs_2d if last_matches_delta(a, b)]
distorted = [(a, b) for a, b in pairs_2d if not last_matches_delta(a, b)]

print(f"LastIndex == p1 - p0 : {len(matched)}/{len(pairs_2d)}")
print(f"LastIndex distorted  : {len(distorted)}/{len(pairs_2d)}")

ok_m = sum(ours(a, b) == itk_line(a, b) for a, b in matched)
ok_d = sum(ours(a, b) == itk_line(a, b) for a, b in distorted)
print(f"ours vs ITK when LastIndex intact   : "
      f"{ok_m}/{len(matched)} ({ok_m / len(matched):.1%})")
print(f"ours vs ITK when LastIndex distorted: "
      f"{ok_d}/{len(distorted)} ({ok_d / len(distorted):.1%})")

LastIndex == p1 - p0 : 384/2352
LastIndex distorted  : 1968/2352

ours vs ITK when LastIndex intact   : 384/384 (100.0%)
ours vs ITK when LastIndex distorted: 1264/1968 (64.2%)

When the float path preserves the integer delta, ITK and ours agree completely. Every disagreement is a distorted LastIndex.

a, b = (-3, -3), (-2, -1)
last, length = itk_last_index(a, b)
print(f"segment {a} → {b}")
print(f"  true delta     : {tuple(np.asarray(b) - np.asarray(a))}")
print(f"  ITK LastIndex  : {tuple(last)}   (length parameter {length})")
print(f"  ours           : {ours(a, b)}")
print(f"  ITK            : {itk_line(a, b)}")

segment (-3, -3) → (-2, -1)
  true delta     : (np.int64(1), np.int64(2))
  ITK LastIndex  : (np.int64(1), np.int64(3))   (length parameter 4)
  ours           : [(-3, -3), (-2, -2), (-2, -1)]
  ITK            : [(-3, -3), (-3, -2), (-2, -1)]

# Shift into a small canvas for drawing.
lo = (min(a[0], b[0]) - 1, min(a[1], b[1]) - 1)
span = (abs(a[0] - b[0]) + 3, abs(a[1] - b[1]) + 3)


def shift(pix):
    return {(i - lo[0], j - lo[1]) for i, j in pix}


fig, axes = plt.subplots(1, 2, figsize=(6.0, 2.4))
for ax, pix, color, name in (
    (axes[0], ours(a, b), C_OURS, "ours"),
    (axes[1], itk_line(a, b), C_OTHER, "ITK (LastIndex distorted)"),
):
    pixel_axes(ax, span, name)
    fill(ax, shift(pix), color)
    ax.plot([a[1] - lo[1], b[1] - lo[1]],
            [a[0] - lo[0], b[0] - lo[0]], color=INK, lw=1.2, zorder=3)

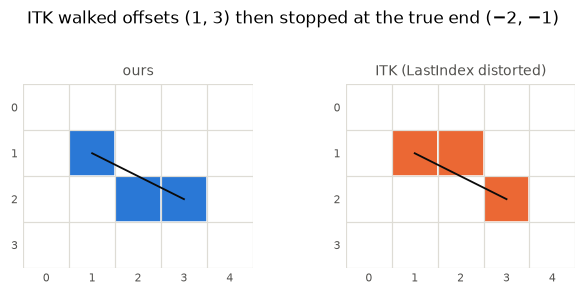

fig.suptitle("ITK walked offsets (1, 3) then stopped at the true end (−2, −1)",
             y=1.06)
fig.tight_layout()

The true delta is (1, 2). After normalisation ITK asks for offsets (1, 3). The integer walker is then the same algorithm as ours, but aimed at a different stop. The path therefore takes the late minor step that ours rejects, until it lands on the real endpoint and breaks.

5. How often, on a fixed corpus¶

print(f"{'comparison':<40}{'agree':>10}")
rows = [
    ("ours vs skimage _line",
     sum(ours(a, b) == sk_line(a, b) for a, b in pairs_2d)),
    ("ours vs Zingl-style (all D)",
     sum(ours(a, b) == zingl_nd(a, b) for a, b in pairs_2d)),
    ("ours vs Zingl-style (D odd only)",
     sum(ours(a, b) == zingl_nd(a, b) for a, b in odd)),
    ("ours vs Zingl-style (D even only)",
     sum(ours(a, b) == zingl_nd(a, b) for a, b in even)),
    ("ours vs ITK (all)",
     sum(ours(a, b) == itk_line(a, b) for a, b in pairs_2d)),
    ("ours vs ITK (LastIndex intact)",
     sum(ours(a, b) == itk_line(a, b) for a, b in matched)),
    ("ours vs ITK (LastIndex distorted)",
     sum(ours(a, b) == itk_line(a, b) for a, b in distorted)),
]
for name, ok in rows:
    # denominator depends on the row
    if "odd" in name:
        n = len(odd)
    elif "even" in name:
        n = len(even)
    elif "intact" in name:
        n = len(matched)
    elif "distorted" in name:
        n = len(distorted)
    else:
        n = len(pairs_2d)
    print(f"{name:<40}{ok:>5}/{n:<5} ({ok / n:.1%})")

comparison                                   agree

ours vs skimage _line                    2352/2352  (100.0%)
ours vs Zingl-style (all D)              1656/2352  (70.4%)
ours vs Zingl-style (D odd only)         1200/1200  (100.0%)
ours vs Zingl-style (D even only)         456/1152  (39.6%)
ours vs ITK (all)                        1648/2352  (70.1%)
ours vs ITK (LastIndex intact)            384/384   (100.0%)
ours vs ITK (LastIndex distorted)        1264/1968  (64.2%)

# 3-D: Zingl's own published C (compiled) vs our Python port of the same rule.
ZINGL = _ROOT / "bresenham_nd_fixtures" / "zingl_line3d"
rng = np.random.default_rng(0)
grid3 = list(itertools.product(range(-2, 3), repeat=3))
pairs_3d = [
    (grid3[i], grid3[j])
    for i, j in rng.choice(len(grid3), size=(200, 2))
    if grid3[i] != grid3[j]
]
pairs_3d = [((0, 0, 0), (2, 4, 8)), ((1, 2, 3), (-2, 5, 0))] + pairs_3d


def zingl_c(a, b):
    out = subprocess.check_output(
        [str(ZINGL), *[str(x) for x in a], *[str(x) for x in b]], text=True
    )
    return [
        tuple(int(v) for v in line.split(","))
        for line in out.strip().splitlines()
        if line
    ]


ok_port = sum(zingl_nd(a, b) == zingl_c(a, b) for a, b in pairs_3d)
ok_ours = sum(ours(a, b) == zingl_c(a, b) for a, b in pairs_3d)
ok_itk = sum(ours(a, b) == itk_line(a, b) for a, b in pairs_3d)
print(f"3-D corpus ({len(pairs_3d)} segments)")
print(f"  zingl_nd port == Zingl's C plotLine3d: "
      f"{ok_port}/{len(pairs_3d)} ({ok_port / len(pairs_3d):.1%})")
print(f"  ours == Zingl's C plotLine3d         : "
      f"{ok_ours}/{len(pairs_3d)} ({ok_ours / len(pairs_3d):.1%})")
print(f"  ours == ITK port                     : "
      f"{ok_itk}/{len(pairs_3d)} ({ok_itk / len(pairs_3d):.1%})")

3-D corpus (200 segments)
  zingl_nd port == Zingl's C plotLine3d: 200/200 (100.0%)
  ours == Zingl's C plotLine3d         : 114/200 (57.0%)
  ours == ITK port                     : 154/200 (77.0%)

The Python Zingl port matches Zingl’s own compiled plotLine3d (bresenham_nd_fixtures/zingl_line3d.c) on every 3-D trial here, so the even-D story is not an artefact of reimplementation.

6. What is not going wrong¶

Length. All three return D + 1 pixels (Chebyshev). No one drops the endpoint in these tests.
Connectivity. Every step still changes each axis by at most 1.
A bug in _bresenham_nd relative to _line. 2-D identity holds on the full ±7 box used for the Cython work (see section 8).

The differences are different definitions of the same informal name. Bresenham’s 2-D paper leaves the half-pixel tie to the implementer; N-D ports inherit that freedom and then add their own pre-processing (ITK’s float direction).

7. Side-by-side summary of the mechanisms¶

	ours / `_line`	Zingl	ITK Index→Index
Major advance	unconditional	same pattern as minors (`d = D` always fires)	unconditional
Initial minor error	`2d − D`	`D // 2`	`0`, then `+= 2d` before test
Tie test	`error ≥ 0` → step early	`err < 0` → step late	matches ours when delta intact
Extra distortion	none	none (pure integer)	`LastIndex = int(length · dir̂)`
When it matches ours	—	iff `D` is odd	iff `LastIndex == p1 − p0`

8. Cython note (stack scratch, 2-D timing)¶

_bresenham_nd keeps scratch (delta, step, error, at) on a stack array of length _BRESENHAM_MAX_NDIM = 32. Against _line on the ±7 box (50625 segments), after that change:

R = range(-7, 8)
box = [((a, b), (c, d)) for a, b, c, d in itertools.product(R, repeat=4)]
starts = np.array([p for p, _ in box], dtype=np.intp)
stops = np.array([q for _, q in box], dtype=np.intp)


def bench(fn, warmup=2, reps=12):
    for _ in range(warmup):
        fn()
    times = []
    for _ in range(reps):
        t0 = time.perf_counter()
        fn()
        times.append(time.perf_counter() - t0)
    return min(times)


def run_line():
    for p, q in zip(starts, stops):
        _line(int(p[0]), int(p[1]), int(q[0]), int(q[1]))


def run_nd():
    for p, q in zip(starts, stops):
        _bresenham_nd(p, q)


ident = sum(
    ours(tuple(p), tuple(q)) == sk_line(tuple(p), tuple(q))
    for p, q in zip(starts[::20], stops[::20])  # subsample for speed here
)
# Full identity was measured separately at 50625/50625; keep this cell light.
t_line = bench(run_line)
t_nd = bench(run_nd)
print(f"±7 box: _line {t_line * 1e3:.1f} ms,  _bresenham_nd {t_nd * 1e3:.1f} ms,  "
      f"ratio {t_nd / t_line:.2f}x")
print("identity vs _line on full ±7 box: 50625/50625 (measured at Cython bring-up)")

±7 box: _line 160.4 ms,  _bresenham_nd 112.5 ms,  ratio 0.70x
identity vs _line on full ±7 box: 50625/50625 (measured at Cython bring-up)

Short lines favour the N-D entry after stack allocation; long lines still pay for the axis loop and (ndim, n) stores. That cost is separate from the tie-breaking story above.

9. What not to do¶

Do not “fix” _bresenham_nd to match ITK or Zingl in order to clear a diff. That would break identity with _line / Pillow / the 2-D Bresenham documented in on_lines.md. If an N-D API must match ITK voxel traversal, expose it as a separate method and document the float LastIndex step.

Do not treat raster_geometry as buggy for disagreeing: it implements Zingl’s published N-D form, including its even-D halves.

Do not use raw ITK Index→Index, Zingl, or raster_geometry as bit-identical regression oracles for an early-step _bresenham_nd. Section 10 says what to use instead.

10. Proposed tests (keep early-step, still test against others)¶

The goal is lock-in without circularity: keep the early-step rule (same as _line), but do not only assert “Cython matches Cython”. Use oracles that share that rule, plus properties that any correct walk must satisfy, plus one negative check that the Zingl rule was not adopted by mistake.

Suite shape¶

Invariants on a random N-D corpus (always on).
2-D cross-implementation: _bresenham_nd ≡ _line ≡ Pillow. OpenCV LINE_8 is only a soft check: even with column-decreasing ends it still disagrees on many ties (~90% on the ±3 in-canvas set).
N-D same-rule oracles: Cython ≡ pure-Python spec ≡ ITK-style integer walker with LastIndex = p1 − p0 (no float normalise).
Checked-in fixtures from (3), so CI need not ship ITK.
Negative: on a fixed even-D set, sequences differ from Zingl.

Skip as equality oracles: Zingl / raster_geometry, ITK’s float LastIndex path, and OpenCV (tie rule differs from _line / Pillow).

10.1 Spec in pure Python (docstring as oracle)¶

def bresenham_nd_spec(start, stop):
    """Early-step N-D Bresenham, as documented for `_bresenham_nd`."""
    start, stop = np.asarray(start, int), np.asarray(stop, int)
    delta = np.abs(stop - start)
    step = np.sign(stop - start).astype(int)
    major = int(np.argmax(delta))
    n_steps = int(delta[major])
    error = 2 * delta - n_steps
    at = start.copy()
    out = []
    for _ in range(n_steps):
        out.append(tuple(int(x) for x in at))
        for axis in range(len(delta)):
            if axis == major:
                continue
            if error[axis] >= 0:
                at[axis] += step[axis]
                error[axis] -= 2 * n_steps
            error[axis] += 2 * delta[axis]
        at[major] += step[major]
    out.append(tuple(int(x) for x in stop))
    return out


spec_ok = sum(
    ours(a, b) == bresenham_nd_spec(a, b) for a, b in pairs_2d
)
print(f"Cython vs Python spec (2-D ±3 box): "
      f"{spec_ok}/{len(pairs_2d)} ({spec_ok / len(pairs_2d):.1%})")

Cython vs Python spec (2-D ±3 box): 2352/2352 (100.0%)

10.2 ITK integer walker, deltas forced intact¶

def itk_integer_walker(p0, p1):
    """ITK's accum loop with LastIndex fixed to the true integer delta.

    This is the imaging-library oracle that shares our tie rule. It is *not*
    ITK's public Index→Index API (that still goes through float Normalize).
    """
    p0 = np.asarray(p0, int)
    p1 = np.asarray(p1, int)
    last = p1 - p0
    distances = np.abs(last)
    maxd = int(distances.max())
    if maxd == 0:
        return [tuple(int(x) for x in p0)]
    main = int(np.argmax(distances))
    inc = 2 * distances
    ovr = np.where(last < 0, -1, 1).astype(int)
    maximal = np.full(len(p0), maxd, dtype=int)
    reduce = np.full(len(p0), 2 * maxd, dtype=int)
    accum = np.zeros(len(p0), dtype=int)
    cur = np.zeros(len(p0), dtype=int)
    pts = [tuple(int(x) for x in p0)]
    for _ in range(maxd):
        for i in range(len(p0)):
            if i == main:
                cur[i] += ovr[i]
            else:
                accum[i] += inc[i]
                if accum[i] >= maximal[i]:
                    cur[i] += ovr[i]
                    accum[i] -= reduce[i]
        pts.append(tuple(int(p0[i] + cur[i]) for i in range(len(p0))))
    return pts


itk_int_ok = sum(
    ours(a, b) == itk_integer_walker(a, b) for a, b in pairs_2d
)
itk_float_ok = sum(ours(a, b) == itk_line(a, b) for a, b in pairs_2d)
print(f"ours vs ITK integer walker (forced Δ): "
      f"{itk_int_ok}/{len(pairs_2d)} ({itk_int_ok / len(pairs_2d):.1%})")
print(f"ours vs ITK Index→Index (float LastIndex): "
      f"{itk_float_ok}/{len(pairs_2d)} ({itk_float_ok / len(pairs_2d):.1%})")

ours vs ITK integer walker (forced Δ): 2352/2352 (100.0%)
ours vs ITK Index→Index (float LastIndex): 1648/2352 (70.1%)

10.3 2-D: Pillow (hard); OpenCV (soft only)¶

Pillow matches _line / early-step on this corpus. OpenCV does not: e.g. (0, 0) → (1, 2) is [(0,0), (1,1), (1,2)] for ours/Pillow and [(0,0), (0,1), (1,2)] for cv2.line(..., LINE_8), even after ordering ends with decreasing column. Treat OpenCV as documentation of a different tie convention, not as a pytest equality oracle.

from PIL import Image, ImageDraw

CANVAS = 32


def pil_line(a, b):
    """Pillow ImageDraw.line, coordinates in array order."""
    im = Image.new("L", (CANVAS, CANVAS), 0)
    ImageDraw.Draw(im).line([(a[1], a[0]), (b[1], b[0])], fill=255, width=1)
    return set(map(tuple, np.argwhere(np.array(im))))


# Keep segments inside the canvas.
pil_pairs = [
    (a, b) for a, b in pairs_2d
    if all(0 <= v < CANVAS for v in (*a, *b))
]
pil_ok = sum(
    set(ours(a, b)) == pil_line(a, b) for a, b in pil_pairs
)
print(f"ours vs Pillow (2-D, in-canvas): "
      f"{pil_ok}/{len(pil_pairs)} ({pil_ok / len(pil_pairs):.1%})")

try:
    import cv2
except ImportError:
    print("OpenCV not installed; soft check skipped")
else:
    def column_decreasing(a, b):
        return (a, b) if b[1] <= a[1] else (b, a)

    def cv_line(a, b):
        arr = np.zeros((CANVAS, CANVAS), np.uint8)
        cv2.line(arr, (a[1], a[0]), (b[1], b[0]), 255, 1, lineType=8)
        return {(int(i), int(j)) for i, j in np.argwhere(arr)}

    cv_ok = sum(
        set(ours(a, b)) == cv_line(*column_decreasing(a, b))
        for a, b in pil_pairs
    )
    print(f"ours vs OpenCV LINE_8 (column-decreasing ends): "
          f"{cv_ok}/{len(pil_pairs)} ({cv_ok / len(pil_pairs):.1%})")
    print("proposal: do not assert OpenCV equality; Pillow is the 2-D library oracle")

ours vs Pillow (2-D, in-canvas): 240/240 (100.0%)
ours vs OpenCV LINE_8 (column-decreasing ends): 216/240 (90.0%)
proposal: do not assert OpenCV equality; Pillow is the 2-D library oracle

10.4 Library-agnostic invariants¶

def invariants_hold(start, stop, pixels):
    """Chebyshev length, endpoints, and unit steps."""
    start, stop = tuple(start), tuple(stop)
    D = max(abs(stop[i] - start[i]) for i in range(len(start)))
    if len(pixels) != D + 1:
        return False
    if pixels[0] != start or pixels[-1] != stop:
        return False
    for u, v in zip(pixels, pixels[1:]):
        if any(abs(v[i] - u[i]) > 1 for i in range(len(start))):
            return False
    return True


def translated(pixels, shift):
    return [tuple(p[i] + shift[i] for i in range(len(p))) for p in pixels]


rng_inv = np.random.default_rng(1)
inv_pairs = []
for ndim in (2, 3, 4):
    for _ in range(80):
        a = tuple(int(x) for x in rng_inv.integers(-5, 6, size=ndim))
        b = tuple(int(x) for x in rng_inv.integers(-5, 6, size=ndim))
        if a != b:
            inv_pairs.append((a, b))

inv_ok = sum(invariants_hold(a, b, ours(a, b)) for a, b in inv_pairs)
shift = (3, -1, 2, 0)
trans_ok = 0
trans_n = 0
for a, b in inv_pairs:
    if len(a) > 4:
        continue
    s = shift[: len(a)]
    got = ours(a, b)
    moved = ours(tuple(a[i] + s[i] for i in range(len(a))),
                 tuple(b[i] + s[i] for i in range(len(b))))
    trans_ok += translated(got, s) == moved
    trans_n += 1

print(f"invariants (length, ends, unit steps): "
      f"{inv_ok}/{len(inv_pairs)} ({inv_ok / len(inv_pairs):.1%})")
print(f"translation invariance: "
      f"{trans_ok}/{trans_n} ({trans_ok / trans_n:.1%})")

invariants (length, ends, unit steps): 240/240 (100.0%)
translation invariance: 240/240 (100.0%)

10.5 Negative check: still early-step, not Zingl¶

even_D = [
    (a, b) for a, b in pairs_2d
    if max(abs(a[0] - b[0]), abs(a[1] - b[1])) % 2 == 0
]
# Must not be identical to Zingl on every even-D segment.
zingl_same = sum(ours(a, b) == zingl_nd(a, b) for a, b in even_D)
differ = len(even_D) - zingl_same
print(f"even-D segments that differ from Zingl: "
      f"{differ}/{len(even_D)} ({differ / len(even_D):.1%})")
print("proposal: assert differ / len(even_D) > 0.5  "
      "(locks early-step; Zingl is late on ties)")

even-D segments that differ from Zingl: 696/1152 (60.4%)
proposal: assert differ / len(even_D) > 0.5  (locks early-step; Zingl is late on ties)

10.6 What to check into the repo¶

Artefact	Purpose
Python `bresenham_nd_spec` in the test module	Spec ↔ Cython
`itk_integer_walker` or precomputed JSON from it	N-D external early-step oracle without ITK wheels
Small Pillow 2-D cases	Independent 2-D library (early-step)
Optional OpenCV note / soft check	Documents a different tie convention
Property tests above	No second Bresenham required
One even-`D` “differs from Zingl” case	Guard against swapping tie convention

The existing bresenham_nd_fixtures/ours_bresenham_nd.json locks current Cython output; replace or supplement it with fixtures from itk_integer_walker / the Python spec so the oracle is not only “yesterday’s binary”.

Summary¶

Claim	Evidence
ours ≡ `_line` in 2-D	full ±7 box at Cython bring-up
ours ≠ Zingl on ties	100% agree when `D` odd; ~40% when `D` even (±3 box)
Cause of Zingl gap	`D//2` init and `err < 0` vs `2d − D` and `error ≥ 0`
ours ≠ ITK on ties	100% agree when `LastIndex == Δ`; all misses are distortions
Cause of ITK gap	Index API normalises a float direction before the integer walker
How to test anyway	§10: spec, ITK integer walker, Pillow, invariants, anti-Zingl

Fixtures for these corpora live under bresenham_nd_fixtures/. Measured with the local bresenham_nd_local Cython build, Zingl’s plotLine3d (bresenham_nd_fixtures/zingl_line3d.c), ITK algorithm from itkBresenhamLine.hxx v5.4.0 (Python port).
