Testing the `frangi` repairs

frangi lost its σ² scale normalisation in version 0.20.0. Before that release it went through a helper that multiplied the Hessian by sigma ** 2 under the comment # Correct for scale; the rewrite that removed the helper kept that line in sato and dropped it from frangi. #7711 is the consequence, reported as “only the smallest scale affects the filter output”.

Restoring it is one line. That one line is unsafe until a second change has landed. frangi_refactor_plan.md sets out the two stages and on_frangi.md has the full defect catalogue. This notebook asks the narrower question the two earlier _testing notebooks ask:

What should the test suite assert, such that every assertion is a sentence about a picture?

Five tests, and one ordering constraint that a test can state and check.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from matplotlib.colors import LinearSegmentedColormap
from itertools import permutations

from nbhelper import show_table

import skimage as ski
from skimage.feature import hessian_matrix, hessian_matrix_eigvals
from skimage.filters import frangi, sato

fatal: not a git repository (or any of the parent directories): .git
fatal: not a git repository (or any of the parent directories): .git

# Slots 1 to 3 of the reference categorical palette, validated all-pairs;
# same palette as `on_frangi.md` and `hessian_testing.md`.
C_ONE, C_TWO, C_THREE = "#2a78d6", "#eb6834", "#1baf7a"
INK, MUTED, RULE = "#0b0b0b", "#52514e", "#dedcd5"

plt.rcParams.update(
    {"figure.dpi": 110, "font.size": 9, "axes.titlesize": 9,
     "axes.titlecolor": MUTED, "figure.facecolor": "white"}
)


def bare(ax, title=None):
    """Strip an image axes down to the pixels."""
    ax.set_xticks([]); ax.set_yticks([])
    for spine in ax.spines.values():
        spine.set_visible(False)
    if title:
        ax.set_title(title)
    return ax


def recede(ax, title=None):
    """Push a plot axes' furniture into the background."""
    ax.tick_params(labelsize=8, colors=MUTED)
    for spine in ("top", "right"):
        ax.spines[spine].set_visible(False)
    for spine in ("left", "bottom"):
        ax.spines[spine].set_color(RULE)
    if title:
        ax.set_title(title)
    return ax

1. The four candidates¶

The two repairs are independent switches, so there are four things to test, not two. parts caches the per-scale eigenvalues, because the tests below run the same scale many times in different orders and the Hessian is all the cost.

_CACHE = {}


def parts(name, image, sigma, power=0.0, mode="reflect"):
    """The two ordered eigenvalues and S at one scale, cached by name."""
    key = (name, float(sigma), float(power), mode)
    if key not in _CACHE:
        eigvals = hessian_matrix_eigvals(hessian_matrix(
            np.asarray(image, float), sigma, mode=mode,
            use_gaussian_derivatives=True))
        eigvals = np.take_along_axis(eigvals, abs(eigvals).argsort(0), 0)
        eigvals = eigvals * sigma**power
        _CACHE[key] = (eigvals[0], eigvals[1], np.sqrt((eigvals**2).sum(0)))
    return _CACHE[key]


def frangi_from(name, image, sigmas, power=0.0, hoist=False, gamma=None,
                beta=0.5, sign_test=False, mode="reflect"):
    """`frangi`, with each repair switchable.

    power     : stage B, the sigma ** 2 restore (D2, #7711).
    hoist     : stage A, resolve gamma over all scales, not just sigmas[0] (D3).
    sign_test : the explicit polarity test instead of the clipped divide (D1).
    """
    got = [parts(name, image, s, power, mode) for s in sigmas]
    if gamma is None:
        norms = [s.max() for _, _, s in got]
        gamma = (max(norms) if hoist else norms[0]) / 2 or 1.0
    out = None
    for lambda1, lambda2, s in got:
        if sign_test:
            ok = lambda2 > 0
            r_b = np.abs(lambda1) / np.where(ok, lambda2, 1.0)
            blobness = np.where(ok, np.exp(-r_b**2 / (2 * beta**2)), 0.0)
        else:
            r_b = np.abs(lambda1) / np.maximum(lambda2, 1e-10)
            blobness = np.exp(-r_b**2 / (2 * beta**2))
        vesselness = blobness * (1 - np.exp(-(s**2) / (2 * gamma**2)))
        out = vesselness if out is None else np.maximum(out, vesselness)
    return out


def grid_gamma(name, image, power, sigmas):
    """Half the largest Hessian norm over the whole sigma grid.

    Any scan over sigma must hold gamma fixed like this.  Let each call
    resolve its own gamma from its own single scale and the structuredness
    term is pinned to 1 - exp(-2) at every sigma, which divides out exactly
    the scale dependence the scan is trying to measure (§9.1).
    """
    return max(parts(name, image, s, power)[2].max() for s in sigmas) / 2


CANDIDATES = {"as shipped": {},
              "stage A, hoist gamma": dict(hoist=True),
              "stage B alone, sigma**2": dict(power=2.0),
              "A + B": dict(hoist=True, power=2.0)}

The transcription has to be exact or nothing below means anything.

def as_grey(image, target=200):
    """Greyscale float, decimated so the longest side is about `target`."""
    if image.ndim == 3:
        image = ski.color.rgb2gray(image)
    image = ski.util.img_as_float(image)
    step = max(1, max(image.shape) // target)
    return image[::step, ::step]


CORPUS = {"camera": as_grey(ski.data.camera()),
          "retina": as_grey(ski.data.retina()),
          "coins": as_grey(ski.data.coins())}

show_table(pd.DataFrame(
    [{"image": name, "shape": str(image.shape),
      "sigmas": str(sig),
      "identical to the library": str(np.array_equal(
          frangi(image, sigmas=sig), frangi_from(name, image, sig)))}
     for name, image in CORPUS.items() for sig in ((1, 3, 5), (5, 3, 1))]),
    index=False)

as shipped reproduces skimage.filters.frangi bit for bit, in both orders.

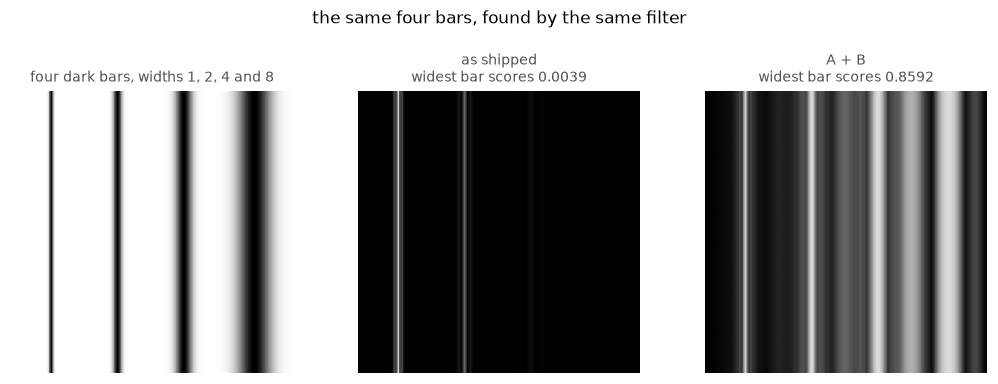

2. The regression, in one picture¶

The issue’s own figure: elongated features of several widths, dark on light.

SIZE = 200
WIDTHS = (1.0, 2.0, 4.0, 8.0)
CENTRES = (28, 75, 122, 172)
SIGMAS = (1, 2, 3, 4, 6, 8, 10, 12)

columns = np.indices((SIZE, SIZE), dtype=float)[1]
BARS = np.ones((SIZE, SIZE))
for width, centre in zip(WIDTHS, CENTRES):
    BARS -= np.exp(-((columns - centre) ** 2) / (2 * width**2))
PROBES = [(SIZE // 2, centre) for centre in CENTRES]

fig, axes = plt.subplots(1, 3, figsize=(9.6, 3.3))
bare(axes[0], "four dark bars, widths 1, 2, 4 and 8")
axes[0].imshow(BARS, cmap="gray")
for ax, label in zip(axes[1:], ("as shipped", "A + B")):
    out = frangi_from("bars", BARS, SIGMAS, **CANDIDATES[label])
    bare(ax, f"{label}\nwidest bar scores {out[PROBES[-1]]:.4f}")
    ax.imshow(out, cmap="gray", vmin=0, vmax=1)
fig.suptitle("the same four bars, found by the same filter", y=1.04)
fig.tight_layout()

The shipped filter answers with thin lines where the bars have edges, and says almost nothing at their centres — which is the reporter’s own description, that “the filter behaves like an edge detector instead”. At σ = 1 a wide bar has no curvature in its middle to respond to, and σ = 1 is the only scale that ever wins. The next cell is the same fact as numbers.

def bar_scores(label):
    """Vesselness at the centre of each bar, for one candidate."""
    out = frangi_from("bars", BARS, SIGMAS, **CANDIDATES[label])
    return [out[probe] for probe in PROBES]


show_table(pd.DataFrame(
    [{"candidate": label,
      **{f"w = {w:g}": round(v, 4) for w, v in zip(WIDTHS, bar_scores(label))},
      "spread, widest ÷ narrowest":
          f"{max(bar_scores(label)) / min(bar_scores(label)):.0f}x"}
     for label in CANDIDATES]), index="candidate")

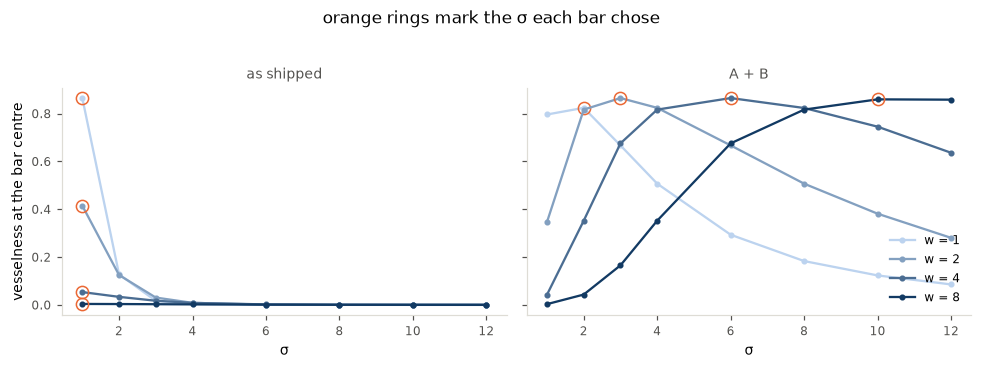

3. Test 1 — a bar’s score must not depend on how wide the bar is¶

This is the plainest statement of what the σ² is for, and it needs no theory: four bars of the same contrast should come out of a ridge filter with the same score. The filter is given a scale for each of them; its job is to use it.

As shipped they come out 0.8647, 0.4148, 0.0535 and 0.0039 — a factor of 220 between the narrowest and the widest, on a picture where the only difference is width. With the σ² they come out within 5% of each other.

# One hue, light to dark, keyed by bar width: the widths are ordered.
ramp = LinearSegmentedColormap.from_list("ramp", ["#bcd3ef", "#123a63"])
shades = [ramp(x) for x in np.linspace(0, 1, len(WIDTHS))]

fig, axes = plt.subplots(1, 2, figsize=(9.0, 3.2), sharey=True)
for ax, label in zip(axes, ("as shipped", "A + B")):
    recede(ax, label)
    power = CANDIDATES[label].get("power", 0.0)
    gamma = grid_gamma("bars", BARS, power, SIGMAS)
    for width, probe, shade in zip(WIDTHS, PROBES, shades):
        scores = [frangi_from("bars", BARS, [s], power=power, gamma=gamma)[probe]
                  for s in SIGMAS]
        ax.plot(SIGMAS, scores, color=shade, lw=1.5, marker="o", ms=3,
                label=f"w = {width:g}")
        peak = SIGMAS[int(np.argmax(scores))]
        ax.plot([peak], [max(scores)], marker="o", ms=8, mfc="none", mec=C_TWO)
    ax.set_xlabel("σ")
axes[0].set_ylabel("vesselness at the bar centre")
axes[1].legend(frameon=False, fontsize=8, loc="lower right")
fig.suptitle("orange rings mark the σ each bar chose", y=1.03)
fig.tight_layout()

On the left every ring sits at σ = 1 — every bar chooses the finest scale — and the four rings are at four different heights, from 0.86 down to 0.004. On the right the rings march to the right as the bar widens, and all four sit at the same height. A test can assert either fact; the height is the easier one to explain and the harder one to satisfy by accident.

4. Test 2 — shuffling the scales must not change the answer¶

sigmas is documented as a set of scales. A set has no order, and the docstring does not say otherwise. Today the answer depends on which scale happens to be first, because gamma=None is resolved on the first iteration of the loop and never revisited.

TRIO = (1, 3, 5)


def order_spread(label, name, image):
    """Worst disagreement over the six permutations of `TRIO`."""
    base = frangi_from(name, image, TRIO, **CANDIDATES[label])
    return max(np.abs(frangi_from(name, image, order, **CANDIDATES[label])
                      - base).max() for order in permutations(TRIO))


show_table(pd.DataFrame(
    [{"image": name,
      **{label: round(order_spread(label, name, image), 4) for label in CANDIDATES}}
     for name, image in CORPUS.items()]), index="image")

Three columns of that table are the whole argument of this notebook, so read them in order. as shipped is wrong by almost the full output range. stage A is exactly zero. stage B alone is wrong again — less, but by up to 0.29 — and A + B is exactly zero.

That is the ordering constraint, measured: the σ² restore reintroduces the defect that stage A removes, so it must not ship first. §8 says why.

show_table(pd.DataFrame(
    [{"image": name,
      "stage A vs shipped, sorted sigmas":
          f"{np.abs(frangi_from(name, image, (1, 3, 5, 7, 9)) - frangi_from(name, image, (1, 3, 5, 7, 9), hoist=True)).max():.1e}",
      "bit-identical": str(np.array_equal(
          frangi_from(name, image, (1, 3, 5, 7, 9)),
          frangi_from(name, image, (1, 3, 5, 7, 9), hoist=True)))}
     for name, image in CORPUS.items()]), index="image")

Stage A is bit-identical to today’s output for an ascending sigmas, on every corpus image. It ships as a refactor, not as a behaviour change — which is what makes it safe to land first and on its own.

5. Test 3 — `sato` and `frangi` must agree which scale finds a bar¶

sato sits in the same module, takes the same sigmas, and kept its σ² through the rewrite that lost frangi’s. Two ridge filters given the same bar and the same scale list should nominate the same scale. This test needs no model of either filter — only that they are both ridge filters.

def winning_sigma(score_at):
    """The sigma with the highest score, given a function of sigma."""
    return max(SIGMAS, key=score_at)


def frangi_winner(power, probe):
    """Which sigma frangi nominates, with gamma held fixed across the scan."""
    gamma = grid_gamma("bars", BARS, power, SIGMAS)
    return winning_sigma(lambda s: frangi_from(
        "bars", BARS, [s], power=power, gamma=gamma)[probe])


show_table(pd.DataFrame(
    [{"bar width": width,
      "w√2": round(width * np.sqrt(2), 2),
      "sato": winning_sigma(
          lambda s: sato(BARS, sigmas=[s], mode="reflect")[probe]),
      "frangi as shipped": frangi_winner(0.0, probe),
      "frangi, A + B": frangi_winner(2.0, probe)}
     for width, probe in zip(WIDTHS, PROBES)]), index="bar width")

γ is held fixed across the scan, for the reason §9.1 measures.

sato and the repaired frangi agree on every row, and both land next to w√2, which is where a σ-squared-normalised filter puts the peak. The shipped frangi says 1 four times.

6. Test 4 — a bright ridge is not a dark ridge¶

black_ridges=True asks for dark ridges. Hand the filter a bright one and it should say nothing.

RIDGE_SIZE = 128
ridge_columns = np.indices((RIDGE_SIZE, RIDGE_SIZE), dtype=float)[1]
RIDGE_PROBE = (RIDGE_SIZE // 2, RIDGE_SIZE // 2)


def bright_ridge(width):
    """A bright Gaussian ridge: an exact function of one coordinate."""
    return np.exp(-((ridge_columns - RIDGE_SIZE // 2) ** 2) / (2 * width**2))


show_table(pd.DataFrame(
    [{"ridge width": width,
      "black_ridges=True (want 0)":
          round(float(frangi(bright_ridge(width), sigmas=[3])[RIDGE_PROBE]), 6),
      "black_ridges=False":
          round(float(frangi(bright_ridge(width), sigmas=[3],
                             black_ridges=False)[RIDGE_PROBE]), 6),
      "the two arrays are identical": str(np.array_equal(
          frangi(bright_ridge(width), sigmas=[3]),
          frangi(bright_ridge(width), sigmas=[3], black_ridges=False)))}
     for width in WIDTHS]), index="ridge width")

Not merely equal at the probe: the two whole arrays are identical, so black_ridges does nothing at all on this picture. 0.864665 is 1 - exp(-2), the largest score a single-scale frangi with the default γ can return — the wrong-polarity ridge is scoring the ceiling.

The cause is that the rejection is done by a division that is meant to explode, abs(lambda1) / max(lambda2, 1e-10), and on an ideal ridge lambda1 is exactly zero, so the division gives 0 rather than infinity. The repair is an explicit sign test.

show_table(pd.DataFrame(
    [{"ridge width": width,
      "sign test, bright read as dark": round(float(frangi_from(
          f"bright{width}", bright_ridge(width), [3], sign_test=True,
          gamma=0.02)[RIDGE_PROBE]), 6),
      "sign test, bright read as bright": round(float(frangi_from(
          f"dark{width}", -bright_ridge(width), [3], sign_test=True,
          gamma=0.02)[RIDGE_PROBE]), 6)}
     for width in WIDTHS]), index="ridge width")

The defect is triggered by lambda1 being exactly zero, which is a property of the picture rather than of the filter. §9.2 measures which pictures have it.

7. Test 5 — the units of brightness must not matter¶

With gamma=None every quantity in frangi is either a ratio of eigenvalues or is measured against s.max(). Multiplying the image by a constant should therefore change nothing at all.

PHOTO = ski.util.img_as_float(ski.data.camera())[::2, ::2]
photo_base = frangi(PHOTO, sigmas=TRIO)

show_table(pd.DataFrame(
    [{"image ×": f"{factor:.0e}",
      "max difference from ×1": f"{np.abs(frangi(PHOTO * factor, sigmas=TRIO) - photo_base).max():.1e}",
      "as % of the output range":
          f"{np.abs(frangi(PHOTO * factor, sigmas=TRIO) - photo_base).max() / photo_base.max():.2%}"}
     for factor in (1e4, 1e2, 1e-2, 1e-4, 1e-5, 1e-6)]), index="image ×")

It does not hold. The 1e-10 in max(lambda2, 1e-10) is an absolute constant in a filter that is otherwise entirely ratios, so once the eigenvalues fall near it the answer changes. The sign test of §6 removes the clip and with it this dependence, which is a second reason to make that change.

8. Why stage B must not ship before stage A¶

§4’s table shows it; this section says why, because a test suite that knows the reason can pin it.

Stage A is a no-op today because S falls with σ, so the largest Hessian norm sits at the smallest σ, which for a sorted list is also sigmas[0]. The σ² multiplies each scale by a different number and destroys that.

show_table(pd.DataFrame(
    [{"image": name, "sigma**power": f"σ**{power:g}",
      "σ carrying the largest S":
          max(SIGS := (1, 3, 5, 7, 9),
              key=lambda s: parts(name, image, s, power)[2].max()),
      "frozen γ ÷ true γ": round(
          parts(name, image, SIGS[0], power)[2].max()
          / max(parts(name, image, s, power)[2].max() for s in SIGS), 4)}
     for name, image in CORPUS.items() for power in (0.0, 2.0)]), index=False)

With σ**0 the answer is the smallest σ on every image, and the frozen γ is the true one — the defect is real but invisible. With σ**2 that stops being true on coins, and the frozen γ is then taken from a scale that is not the maximum.

Which images move depends on where the image’s dominant structure lives, so this table is about this corpus. §4’s permutation column is the claim that does not depend on that: with σ² and a frozen γ, every image shows an ordering spread, and with stage A none of them does.

9. What the tests must avoid¶

9.1 Hold γ fixed while scanning σ¶

This is the trap that caught three separate cells of this notebook before they were corrected, so it goes first. gamma=None resolves to half the largest Hessian norm of the scales it was given. Hand a single σ to each call and each call sets its own reference, which pins the structuredness term to 1 - e⁻² at the strongest pixel of every scale — dividing out exactly the scale dependence the scan is there to measure.

def winners(power, gamma):
    """The sigma each bar chooses, at this power and this gamma."""
    return [max(SIGMAS, key=lambda s: frangi_from(
        "bars", BARS, [s], power=power, gamma=gamma)[probe]) for probe in PROBES]


show_table(pd.DataFrame(
    [{"gamma": label,
      "as shipped": str(winners(0.0, gamma(0.0))),
      "A + B": str(winners(2.0, gamma(2.0))),
      "the two agree": str(winners(0.0, gamma(0.0)) == winners(2.0, gamma(2.0)))}
     for label, gamma in (
         ("resolved per call (wrong)", lambda power: None),
         ("resolved over the grid",
          lambda power: grid_gamma("bars", BARS, power, SIGMAS)))]),
    index="gamma")

With a per-call γ the shipped filter and the repaired one nominate the same scales, so the test cannot fail and the figure in §3 comes out as two identical panels. With one γ across the scan they differ on every bar.

9.2 Turn the ridge before trusting a rasterised one¶

§6’s defect needs lambda1 exactly zero, and whether a picture gives that depends on its orientation, not on how smoothly it is drawn. A bar parallel to an image axis is a function of one coordinate whatever its profile, so the curvature along it is exactly zero either way. Turn the same bar and the profile starts to matter.

TURN = 160
turn_rows, turn_cols = np.indices((TURN, TURN), dtype=float)
diagonal = ((turn_rows - 80) * np.cos(np.deg2rad(30))
            - (turn_cols - 80) * np.sin(np.deg2rad(30)))
straight = turn_cols - 80

show_table(pd.DataFrame(
    [{"ridge": label,
      "|lambda1| at the centre":
          f"{abs(parts(label, shape, 3.0)[0][80, 80]):.1e}",
      "black_ridges=True (want 0)":
          round(float(frangi(shape, sigmas=[3])[80, 80]), 6)}
     for label, shape in (
         ("axis-aligned, profile", np.exp(-straight**2 / (2 * 4.0**2))),
         ("axis-aligned, thresholded", (np.abs(straight) < 4.0).astype(float)),
         ("turned 30°, profile", np.exp(-diagonal**2 / (2 * 4.0**2))),
         ("turned 30°, thresholded", (np.abs(diagonal) < 4.0).astype(float)))]),
    index="ridge")

The last row is the trap, and it is the opposite of the one to expect: a turned rasterised bar puts lambda1 at 2e-05, which clears the 1e-10 clip, so the filter rejects the wrong polarity correctly and the test passes on a broken implementation. The turned exact profile keeps lambda1 at 3e-18 and the defect fires.

So a polarity test may use an axis-aligned bar drawn any way at all, or a turned bar drawn as an exact profile — but a turned bar drawn by thresholding proves nothing.

9.3 Do not test the ordering with a single σ¶

The ordering defect lives in which scale is first. A one-element sigmas has no order, and a test that passes one cannot fail.

9.4 Do not assert “close” where the answer is “identical”¶

Stage A is bit-identical to today’s output for sorted sigmas, and both stages make the permutation spread exactly 0.0. Those are equalities, not tolerances. A test written with rtol=1e-5 would pass a filter that still resolved γ from the wrong scale, as long as the scales were close together.

9.5 Do not measure scale selection below σ = 1 yet¶

hessian_testing.md measures the shipped Hessian reporting 8% of a quadratic’s curvature at σ = 0.5. A scale-selecting frangi on that operator picks the wrong scale for any structure narrow enough to need a small σ. Keep this suite’s σ grid at 1 and above until hessian_matrix is fixed.

10. The suite¶

def test_a_bars_score_does_not_depend_on_its_width(name, image, **kw):
    """Four bars of one contrast and four widths must score alike."""
    out = frangi_from(name, image, SIGMAS, **kw)
    scores = [out[probe] for probe in PROBES]
    assert min(scores) / max(scores) > 0.9


def test_shuffling_the_scales_changes_nothing(name, image, **kw):
    """`sigmas` is a set of scales, so its order must not matter."""
    base = frangi_from(name, image, TRIO, **kw)
    for order in permutations(TRIO):
        assert np.array_equal(frangi_from(name, image, order, **kw), base)


def test_agrees_with_sato_about_scale(name, image, **kw):
    """Two ridge filters must nominate the same scale for the same bar.

    gamma is resolved once over the whole grid and held fixed, or each
    single-scale call pins its own structuredness and the scan measures
    nothing (§5).
    """
    gamma = grid_gamma(name, image, kw.get("power", 0.0), SIGMAS)
    for probe in PROBES:
        theirs = max(SIGMAS,
                     key=lambda s: sato(image, sigmas=[s], mode="reflect")[probe])
        ours = max(SIGMAS, key=lambda s: frangi_from(
            name, image, [s], gamma=gamma, **kw)[probe])
        assert ours == theirs


def test_a_bright_ridge_is_not_a_dark_ridge(name, image, **kw):
    """`black_ridges=True` must say nothing about a bright ridge."""
    for width in WIDTHS:
        bright = bright_ridge(width)
        scored = frangi_from(f"{name}-bright{width}", bright, [3],
                             gamma=0.02, **kw)[RIDGE_PROBE]
        assert scored < 1e-12


def test_brightness_units_do_not_matter(name, image, **kw):
    """Scaling the image must not change a filter built from ratios.

    Run on the photograph, not the bars: the `1e-10` clip only bites where
    an eigenvalue falls near it, and the bars never get that flat (§10.1).
    """
    reference = frangi_from("photo", PHOTO, TRIO, **kw)
    for factor in (1e-6, 1e-2, 1e2):
        scaled = frangi_from(f"photo-x{factor}", PHOTO * factor, TRIO, **kw)
        assert np.allclose(scaled, reference, atol=1e-6)

SUITE = [test_a_bars_score_does_not_depend_on_its_width,
         test_shuffling_the_scales_changes_nothing,
         test_agrees_with_sato_about_scale,
         test_a_bright_ridge_is_not_a_dark_ridge,
         test_brightness_units_do_not_matter]

# Every test runs on the bars picture, which carries all five properties.
STAGES = {"as shipped": {},
          "A": dict(hoist=True),
          "A + B": dict(hoist=True, power=2.0),
          "A + B + sign test": dict(hoist=True, power=2.0, sign_test=True)}


def outcome(test, kw, tag):
    """Run one test against one candidate, and report pass or FAIL."""
    try:
        test(f"bars{tag}", BARS, **kw)
        return "pass"
    except AssertionError:
        return "FAIL"


show_table(pd.DataFrame(
    [{"test": test.__name__.removeprefix("test_").replace("_", " "),
      **{label: outcome(test, kw, label) for label, kw in STAGES.items()}}
     for test in SUITE]), index="test")

Each stage turns exactly the tests it is meant to turn, and turns none of the others back. The last column is the filter this plan proposes.

11. Summary¶

test	the sentence it asserts	which stage makes it pass
a bar’s score does not depend on its width	four bars of one contrast score alike	B
shuffling the scales changes nothing	`sigmas` is a set	A, and A again after B
agrees with `sato` about scale	two ridge filters nominate the same σ	B
a bright ridge is not a dark ridge	`black_ridges` does what it says	the sign test
brightness units do not matter	a filter of ratios has no units	the sign test

and the rules a test must obey: hold γ fixed while scanning σ (§9.1), never prove polarity on a turned rasterised bar (§9.2), never test the ordering with one σ (§9.3), assert equality where the answer is exact (§9.4), and keep σ at 1 and above until hessian_matrix is fixed (§9.5).

Limits. Three photographs from skimage.data decimated to about 200 px, one synthetic bar picture at 200², one synthetic ridge at 128², mode='reflect' throughout, default beta, and σ from 1 to 12. Permutation scans use three scales, not the full default list of five. Everything here is 2-D: frangi’s 3-D branch shares the gamma and polarity code and so shares D1 and D3 by inspection, but that is a reading and not a measurement. §8’s table is a statement about this corpus; §4’s permutation column is the claim that is not. The measurements run against the released two-pass hessian_matrix, so the numbers move a little once that is repaired — the pass and fail pattern in §10 does not.

print(f"scikit-image {ski.__version__}")

scikit-image 0.26.1rc0.dev0
