On the `hessian` filter

skimage.filters.hessian calls frangi, then sets every non-positive pixel to 1. The docstring calls the result a filtered image and cites the Hybrid Hessian Filter of Ng, Yap, Costen and Li (2014).

Two questions follow. Does the returned array rank ridges above non-ridges? Is it the cited algorithm? The answer to both is no.

import pathlib

import numpy as np
import pandas as pd
import scipy.ndimage as ndi
import sympy as sp

from nbhelper import show_table

# The subject under test, and its three neighbours in the same module.
import skimage as ski
from skimage.filters import frangi, hessian, meijering, sato
from skimage.morphology import remove_small_objects

fatal: not a git repository (or any of the parent directories): .git
fatal: not a git repository (or any of the parent directories): .git

import matplotlib.pyplot as plt

# Every figure here shows pixels in greyscale. The only colours are furniture.
INK, MUTED, RULE = "#0b0b0b", "#52514e", "#dedcd5"
plt.rcParams.update(
    {"figure.dpi": 110, "font.size": 9, "axes.titlesize": 9,
     "axes.titlecolor": MUTED, "figure.facecolor": "white"}
)

Helpers¶

def bare(ax, title=None):
    """Strip an image axes down to the pixels."""
    ax.set_xticks([]); ax.set_yticks([])
    for spine in ax.spines.values():
        spine.set_visible(False)
    if title:
        ax.set_title(title)
    return ax


def paper_eq16(score):
    """Eq. (16) of the paper: 0 where the score is positive, 1 elsewhere."""
    return (score <= 0).astype(float)


def skimage_clamp(score):
    """What `hessian` adds to `frangi`: the `otherwise 1` branch, alone."""
    out = score.copy()
    out[out <= 0] = 1
    return out


def jaccard(a, b):
    """The Jaccard similarity index of two boolean masks, the paper's JSI."""
    a, b = np.asarray(a, bool), np.asarray(b, bool)
    return (a & b).sum() / max((a | b).sum(), 1)


def standardise(a):
    return (a - a.mean()) / a.std()


def agreement(a, b):
    """Correlation of two images, after removing mean and scale."""
    return np.corrcoef(standardise(a).ravel(), standardise(b).ravel())[0, 1]

# `camera()` is uint8. The ridge filters cast rather than rescale, so 0-255
# reaches the filter intact. Section 4 measures what that implies.
CAMERA = ski.data.camera()
PHOTO = CAMERA[::2, ::2]                       # decimated, for speed
PHOTO_FLOAT = ski.util.img_as_float(PHOTO)     # the same picture in [0, 1]
SIGMAS = (1, 3, 5, 7, 9)                       # the `hessian` default


def dark_bar(shape=(128, 128), width=4, blur=1.0):
    """One dark vertical bar on a flat white field, in 0-255."""
    image = np.ones(shape)
    centre = shape[1] // 2
    image[:, centre - width // 2:centre + width // 2] = 0.0
    return ndi.gaussian_filter(image, blur) * 255


BAR = dark_bar()
FIELD = (slice(5, 20), slice(5, 20))           # a corner, with no structure
SPINE = (slice(20, 108), 63)                   # down the middle of the bar

1. The problem¶

hessian and sato sit in the same module. Both documents say they detect continuous ridges. Run both on camera() with their defaults.

their_sato = sato(CAMERA)
their_hessian = hessian(CAMERA)

fig, axes = plt.subplots(1, 3, figsize=(10.5, 3.7))
bare(axes[0], "camera()")
axes[0].imshow(CAMERA, cmap="gray")
bare(axes[1], "sato(camera())")
axes[1].imshow(their_sato, cmap="gray", vmin=0,
               vmax=np.percentile(their_sato, 99.5))
bare(axes[2], "hessian(camera())")
axes[2].imshow(their_hessian, cmap="gray", vmin=0, vmax=1)
fig.tight_layout()

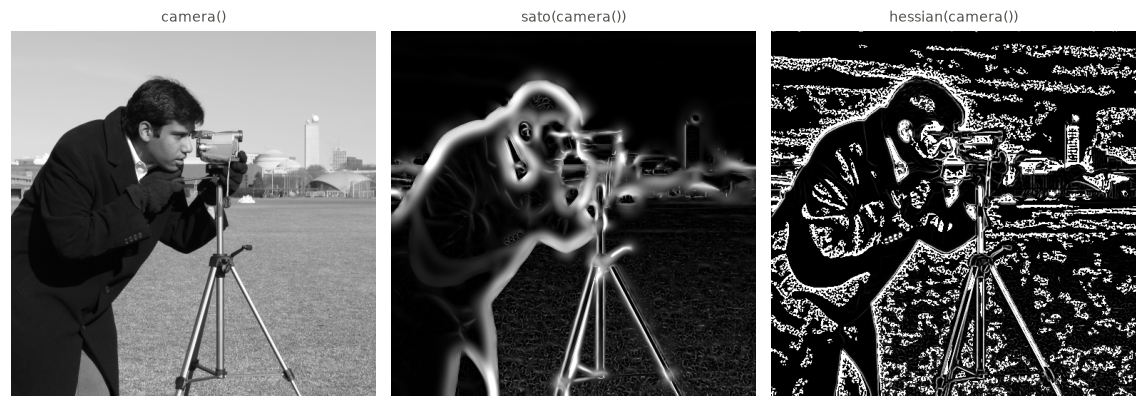

sato gives a ridge map. hessian gives a ridge map with a white crust over the grass, the sky and the coat. The crust is the filter’s largest value.

show_table(pd.DataFrame([
    {"quantity": "the filter's largest value",
     "sato": f"{their_sato.max():.4f}", "hessian": f"{their_hessian.max():.4f}"},
    {"quantity": "share of the 512x512 image at that value",
     "sato": f"{(their_sato == their_sato.max()).mean():.2%}",
     "hessian": f"{(their_hessian == 1).mean():.2%}"},
    {"quantity": "largest value below it",
     "sato": f"{their_sato[their_sato < their_sato.max()].max():.4f}",
     "hessian": f"{their_hessian[their_hessian < 1].max():.6f}"},
]), index="quantity")

17.88% of the 262144 pixels read exactly 1.0. The largest value below 1.0 is 0.999790. Section 3 shows that the pixels at 1.0 are the ones the filter rejected, and that 0.999790 is a genuine ridge score.

These are the documented defaults, on the library’s own sample image, in the dtype it ships in.

2. What the code computes¶

The body of hessian is three statements.

filtered = frangi(image, sigmas=sigmas, alpha=alpha, beta=beta, gamma=gamma, ...)
filtered[filtered <= 0] = 1
return filtered

The second statement is not an invention. It is half of eq. (16) of the paper.

The paper builds a wrinkle detector in five steps.

Directional gradient, eq. (1). The forehead image $I$ gives one partial derivative. That derivative, not $I$ , is the image the rest of the pipeline reads. The paper writes: “Let $\partial I/\partial y$ denoted as $\mathcal{I}$ , the Hessian matrix $\mathcal{H}$ of $\mathcal{I}$ at scale $\sigma$ is defined as Eq. (2).”
Hessian and eigenvalues of $\mathcal{I}$ at each scale, eqs. (2) to (11).
Vesselness, eqs. (12) to (15): $\mathcal{R} = (\lambda_1/\lambda_2)^2$ , $\mathcal{S} = \lambda_1^2 + \lambda_2^2$ , the two-term exponential of eq. (14) with a zero branch on the sign of $\lambda_2$ , and the maximum over $\sigma \in \{1, 3, 5, 7\}$ of eq. (15). $\beta_1 = 0.5$ , $\beta_2 = 15$ .
Binarise, eq. (16): $\mathcal{L} = 0$ where $\mathcal{L} > 0$ , and 1 otherwise.
Area threshold: remove every 8-connected region below 250 pixels.

Steps 4 and 5 work as a pair. Eq. (16) scores nothing. It makes a binary candidate mask. Step 5 then drops every component too small to be a wrinkle. The paper’s output is a mask.

skimage.filters.hessian implements step 3, on the wrong input, and the otherwise 1 branch of step 4.

show_table(pd.DataFrame([
    {"step in the paper": "1. directional gradient, eq. (1)",
     "in `skimage.filters.hessian`": "absent"},
    {"step in the paper": "2. Hessian and eigenvalues",
     "in `skimage.filters.hessian`": "present, but of the raw image"},
    {"step in the paper": "3. vesselness, eqs. (12)-(15)",
     "in `skimage.filters.hessian`": "present, through `frangi`"},
    {"step in the paper": "4. binarise, eq. (16)",
     "in `skimage.filters.hessian`": "half: the `1` branch only"},
    {"step in the paper": "5. area threshold, 250 px",
     "in `skimage.filters.hessian`": "absent"},
]), index="step in the paper")

The paper’s constants came across intact. beta=0.5 is its $\beta_1$ . gamma=15 is its $\beta_2$ . sigmas=range(1, 10, 2) is its $\{1, 3, 5, 7\}$ with a 9 added.

3. D1 — eq. (16) is implemented by half¶

Eq. (16) maps a score to $\{0, 1\}$ . skimage writes the 1 and omits the 0. The positive scores stay in the output, beside the 1s.

score = frangi(PHOTO, sigmas=SIGMAS, gamma=15, mode="reflect")
mask, clamped = paper_eq16(score), skimage_clamp(score)

show_table(pd.DataFrame([
    {"output": "the paper, eq. (16)",
     "distinct values": f"{len(np.unique(mask))}",
     "share equal to 1": f"{(mask == 1).mean():.2%}"},
    {"output": "`skimage.filters.hessian`",
     "distinct values": f"{len(np.unique(clamped)):,}",
     "share equal to 1": f"{(clamped == 1).mean():.2%}"},
]), index="output")

Both put 1 in the same pixels. They differ everywhere else.

print("the 1-pixels are the same set:", np.array_equal(mask == 1, clamped == 1))
print("elsewhere `skimage` keeps the score:",
      np.array_equal(clamped[mask == 0], score[mask == 0]))

the 1-pixels are the same set: True
elsewhere `skimage` keeps the score: True

The 1-pixels are the zero branch of eq. (14). Rebuild that branch from the eigenvalues. A pixel enters it when $\lambda_2$ fails the sign test at every scale.

from skimage.feature import hessian_matrix, hessian_matrix_eigvals


def sign_accepted(image, sigma):
    """Pixels that pass the sign test at one scale: lambda_2 > 0."""
    elements = hessian_matrix(image, sigma, mode="reflect",
                              use_gaussian_derivatives=True)
    eigvals = hessian_matrix_eigvals(elements)
    eigvals = np.take_along_axis(eigvals, np.abs(eigvals).argsort(0), 0)
    return eigvals[1] > 0


accepted = np.logical_or.reduce(
    [sign_accepted(PHOTO.astype(float), s) for s in SIGMAS])
print("rejected at every scale == the 1-pixels:",
      np.array_equal(~accepted, mask == 1))

rejected at every scale == the 1-pixels: True

One array now holds two meanings. A pixel at 1 means the sign test rejected this pixel. Any other value means this is how ridge-like the pixel is. The docstring promises “Filtered image (maximum of pixels across all scales)”, which describes neither meaning.

fig, axes = plt.subplots(1, 3, figsize=(10.0, 3.3))
bare(axes[0], "the picture")
axes[0].imshow(PHOTO, cmap="gray")
bare(axes[1], "eq. (16): white means rejected")
axes[1].imshow(mask, cmap="gray", vmin=0, vmax=1)
bare(axes[2], "`hessian()`: white means either")
axes[2].imshow(clamped, cmap="gray", vmin=0, vmax=1)
fig.tight_layout()

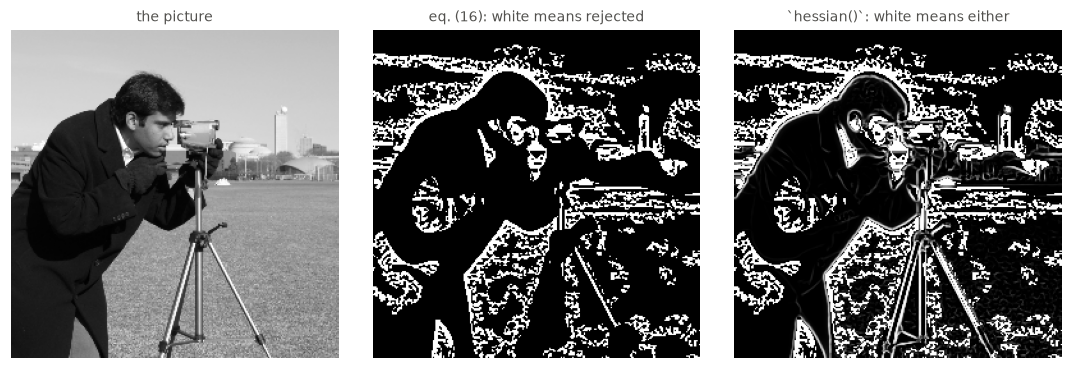

Panel 2 holds one meaning. White marks the pixels eq. (16) rejects. Panel 3 holds both. The camera, the tripod and the man’s outline are bright there because they are ridges. The grass and the sky are bright because the filter threw them away.

3.1 The sentinel is above every score that the filter can give¶

Call the 1 written by the clamp the sentinel. The two meanings stay separable while the sentinel is above or below every score. It is above. That is a property of eq. (14), not of this image.

Eq. (14) multiplies a blobness factor by a structuredness factor:

V = \exp\left(-\frac{\mathcal{R}}{2\beta_1^2}\right) \left(1 - \exp\left(-\frac{\mathcal{S}}{2\beta_2^2}\right)\right)

(1)

S, c, R, beta = sp.symbols("S c R beta", positive=True)
blobness = sp.exp(-R / (2 * beta**2))
structuredness = 1 - sp.exp(-S / (2 * c**2))
V = blobness * structuredness

print("blobness <= 1      :", sp.simplify(blobness <= 1))
print("structuredness < 1 :", sp.simplify(structuredness < 1))
print("1 - V at R = 0     :", sp.simplify(1 - V.subs(R, 0)))
print("sup of V over S    :", sp.limit(V.subs(R, 0), S, sp.oo))

blobness <= 1      : exp(-R/(2*beta**2)) <= 1
structuredness < 1 : True
1 - V at R = 0     : exp(-S/(2*c**2))
sup of V over S    : 1

The structuredness factor stays below 1 for every finite $\mathcal{S}$ . The blobness factor stays at or below 1. So $V < 1$ always. The supremum of $V$ is 1, and $V$ never reaches it. The clamp writes exactly 1.

The sentinel is therefore above every score the filter can produce, for every image and every parameter value.

That holds in exact arithmetic. In float64 the gap $1 - V$ can fall below 2^-53 and round to zero, which makes a genuine score equal to the sentinel bit for bit. Section 11 measures a case. Either way no threshold separates the two meanings, and every threshold that keeps the strongest scores keeps all of the rejected pixels first.

bright = clamped > 0.99
show_table(pd.DataFrame([
    {"pixels above 0.99": "every one of them",
     "share of the 256x256 image": f"{bright.mean():.2%}"},
    {"pixels above 0.99": "those at the sentinel, meaning rejected",
     "share of the 256x256 image": f"{(bright & (mask == 1)).mean():.2%}"},
    {"pixels above 0.99": "those that are genuine ridge scores",
     "share of the 256x256 image": f"{(bright & (mask == 0)).mean():.2%}"},
]), index="pixels above 0.99")

3.2 How often, and how big¶

The proof covers every image. The corpus below tests 15 sample images from skimage.data, decimated by 2, colour images converted to grey, each filtered with the hessian defaults.

CORPUS = ["camera", "coins", "moon", "text", "page", "brick", "grass",
          "gravel", "cell", "human_mitosis", "microaneurysms", "retina",
          "coffee", "astronaut", "horse"]


def as_grey_ubyte(image):
    """One 2-D uint8 image, whatever `skimage.data` returned."""
    if image.ndim == 3:
        image = ski.color.rgb2gray(image)
    return ski.util.img_as_ubyte(image)


rows = []
for name in CORPUS:
    image = as_grey_ubyte(getattr(ski.data, name)())[::2, ::2]
    out = hessian(image, mode="reflect")
    rows.append({"image": name,
                 "sentinel share": (out == 1).mean(),
                 "best score": out[out < 1].max()})
corpus = pd.DataFrame(rows).set_index("image")

# `gap` carries the claim: the best genuine score is below the sentinel by it.
# Shown instead of the score itself, which rounds to 1.000000 for `horse`.
show_table(pd.DataFrame({
    "share at the sentinel": corpus["sentinel share"].map("{:.2%}".format),
    "gap below the sentinel": 1 - corpus["best score"],
}), index=True, floatfmt=".2e")

Downloading file 'data/mitosis.tif' from 'https://gitlab.com/scikit-image/data/-/raw/2cdc5ce89b334d28f06a58c9f0ca21aa6992a5ba/AS_09125_050116030001_D03f00d0.tif' to '/home/runner/.cache/scikit-image/main'.

# Compared on the raw floats: formatting to 6 dp rounds `horse` up to 1.000000.
below = corpus["best score"] < 1.0
print(f"images where the sentinel is above every genuine score: "
      f"{below.sum()} of {len(corpus)}")
print(f"smallest gap to the sentinel: {(1 - corpus['best score']).min():.1e} "
      f"({(1 - corpus['best score']).idxmin()})")
print(f"share at the sentinel ranges {corpus['sentinel share'].min():.2%} "
      f"to {corpus['sentinel share'].max():.2%}")

images where the sentinel is above every genuine score: 15 of 15
smallest gap to the sentinel: 1.7e-06 (horse)
share at the sentinel ranges 9.06% to 56.95%

The rank order is wrong on all 15 images. The gap shrinks to 3.6e-08.

4. D2 — `gamma` is absolute, so the answer follows the dtype¶

gamma is Frangi’s $c$ , written $\beta_2$ in the paper. It sets the reference level for the Hessian norm $\mathcal{S}$ . It is the only quantity in the filter with absolute units. The paper states both the value and its dependence on range:

“ $\beta_2$ depends on the greyscale range of the ridge of interest and controls the sensitivity of the filter to the measure $\mathcal{S}$ and the default value is 15.”

The ridge filters do not rescale their input. ridges.py casts with astype, not img_as_float. A uint8 image arrives as 0-255, and 15 is the right constant for it. Section 1 measured that case.

img_as_float is the identity on input that is already float. Both of the images below are ordinary things to pass.

def hessian_norm(image, sigma):
    """The Frobenius norm of the Hessian: eq. (13) before the square."""
    elements = hessian_matrix(image, sigma, mode="reflect",
                              use_gaussian_derivatives=True)
    doubled = [e**2 if k in (0, len(elements) - 1) else 2 * e**2
               for k, e in enumerate(elements)]
    return np.sqrt(sum(doubled))


show_table(pd.DataFrame(
    [{"the image the filter sees": label,
      "largest S": f"{hessian_norm(-image, 3.0).max():.4g}",
      "structuredness at gamma = 15":
          f"{1 - np.exp(-hessian_norm(-image, 3.0).max()**2 / (2 * 15.0**2)):.3e}"}
     for label, image in (("camera(), uint8 0-255", PHOTO.astype(float)),
                          ("img_as_float(camera()), [0, 1]", PHOTO_FLOAT))]),
    index="the image the filter sees")

The gate is open at the range the constant was chosen for. It is shut five orders down at the other range. hessian gives a different answer for each dtype, and the difference changes the rank order.

show_table(pd.DataFrame(
    [{"filter": name,
      "same answer for uint8 and float?":
          str(np.allclose(f(PHOTO), f(PHOTO_FLOAT))),
      "correlation between the two answers":
          f"{np.corrcoef(f(PHOTO).ravel(), f(PHOTO_FLOAT).ravel())[0, 1]:+.3f}"}
     for name, f in (("frangi", frangi), ("meijering", meijering),
                     ("sato", sato), ("hessian", hessian))]),
    index="filter")

frangi and meijering give the same answer for both dtypes. sato rescales with its input and keeps the rank order, so it correlates at 1. hessian is the only one of the four that changes the rank order.

frangi avoids this with gamma=None, which takes the constant from the image. hessian hard-codes the literal.

rows = []
for g in (15, 15 / 255, None):
    out = hessian(PHOTO_FLOAT, sigmas=SIGMAS, gamma=g, mode="reflect")
    rows.append({"gamma, on the float image": str(g),
                 "largest value below the sentinel": f"{out[out < 1].max():.3e}",
                 "share at the sentinel": f"{(out == 1).mean():.2%}"})
show_table(pd.DataFrame(rows), index="gamma, on the float image",
           floatfmt=".3e")

Dividing gamma by 255 returns the float image to the behaviour of the uint8 one. The share at the sentinel does not move at any gamma: section 3 showed that the eigenvalue signs fix it. D1 and D2 are independent. D1 does not depend on the dtype.

5. D3 — the directional gradient is missing¶

The filter is hybrid because it joins a directional gradient to the Hessian. Eq. (1) takes the gradient of $I$ . Every equation from (2) onward is written in $\mathcal{I} = \partial I/\partial y$ , not in $I$ . The caption of the paper’s Fig. 2(c) says a Gaussian filter derives that gradient.

skimage.filters.hessian passes the image straight to frangi.

gradient_y = ndi.gaussian_filter(PHOTO.astype(float), 1, order=(1, 0))

on_image = frangi(PHOTO, sigmas=SIGMAS, mode="reflect")
on_gradient = frangi(gradient_y, sigmas=SIGMAS, mode="reflect")
print(f"correlation of the two responses: "
      f"{np.corrcoef(on_image.ravel(), on_gradient.ravel())[0, 1]:+.3f}")

correlation of the two responses: +0.153

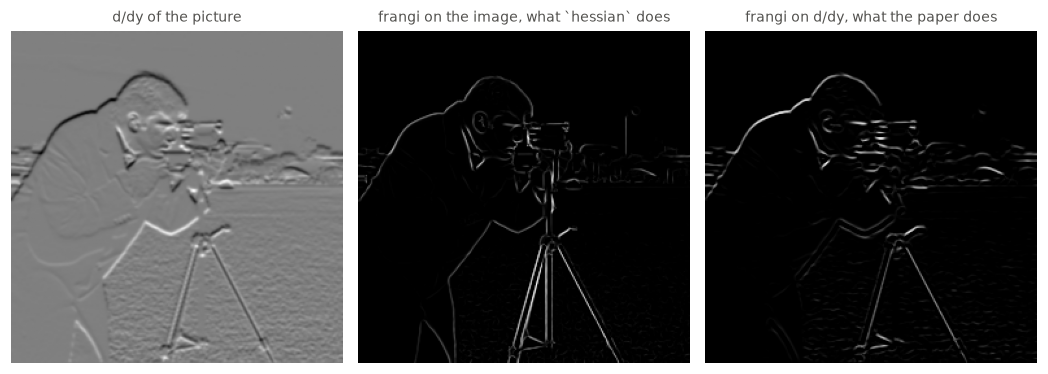

fig, axes = plt.subplots(1, 3, figsize=(9.6, 3.3))
limit = np.abs(gradient_y).max()
bare(axes[0], "d/dy of the picture")
axes[0].imshow(gradient_y, cmap="gray", vmin=-limit, vmax=limit)
bare(axes[1], "frangi on the image, what `hessian` does")
axes[1].imshow(on_image, cmap="gray", vmin=0, vmax=on_image.max())
bare(axes[2], "frangi on d/dy, what the paper does")
axes[2].imshow(on_gradient, cmap="gray", vmin=0, vmax=on_gradient.max())
fig.tight_layout()

The two responses correlate at 0.19. No choice of constant turns one into the other, because gamma cannot change which image is differentiated.

The docstring says hessian “uses alternative method of smoothing”. Nothing in the code does that. The paper’s discussion names the gradient step: “in HHF the directional gradient has greatly smoothed the image and preserved the data of interest”. The docstring describes the step the port left out.

6. D4 — the area threshold is missing¶

Eq. (16) is not the end of the paper’s pipeline. The paper then removes every 8-connected region below 250 pixels, and calls the result the estimated wrinkle. The threshold depends on the image: the paper states that it is “based on the initial image resolution”.

kept = remove_small_objects(mask.astype(bool), max_size=249, connectivity=2)
show_table(pd.DataFrame([
    {"stage": "the eq. (16) mask",
     "share of the 256x256 image": f"{mask.mean():.2%}"},
    {"stage": "after the 250 px area threshold",
     "share of the 256x256 image": f"{kept.mean():.2%}"},
]), index="stage")

A component filter needs components. A continuous score has none. The area threshold is the reason eq. (16) returns a mask.

7. Agreement with the paper’s worked example¶

The paper’s images are forehead crops from the Bosphorus face database. That database is not redistributable. The ground truth came from three coders and was never published. The headline result, a mean JSI of 75.67% over 100 images, is therefore closed to replication outside the group.

The paper prints one worked example at every stage, as its Fig. 2, at 845x117 and 365 ppi. Those panels are enough to check the pipeline end to end. Give the paper its own panel (b), and compare each stage against the panel it printed.

Provenance

The panels under notebooks/hhf_fig2_fixtures/ are extracted from Fig. 2 of Ng, Yap, Costen and Li, “Automatic Wrinkle Detection using Hybrid Hessian Filter”, ACCV 2014 (Ng et al. (2015)), © Springer International Publishing. The authors’ accepted manuscript carries CC BY-NC-ND 4.0.

They are reproduced below, unaltered apart from conversion to 8-bit greyscale, for the non-commercial purpose of verifying the algorithm this notebook assesses, with attribution as above. That use is permitted by the licence; the licence forbids distributing modified versions of them.

They are not covered by this repository’s own licence. See the Files: stanza for notebooks/hhf_fig2_fixtures/ in LICENSE, and that directory’s README.md. The underlying forehead photograph comes from the Bosphorus face database and is not redistributed: only the five printed panels the comparison needs.

PANEL_FILES = {"b": "fig2b_greyscale", "c": "fig2c_gradient",
               "d": "fig2d_vesselness", "e": "fig2e_mask",
               "f": "fig2f_threshold"}


def _fixtures():
    """Locate hhf_fig2_fixtures, whatever the working directory is."""
    for base in (pathlib.Path.cwd(), *pathlib.Path.cwd().parents):
        for candidate in (base, base / "notebooks"):
            if (candidate / "hhf_fig2_fixtures" / "fig2b_greyscale.png").is_file():
                return candidate / "hhf_fig2_fixtures"
    raise FileNotFoundError(
        "cannot find hhf_fig2_fixtures/; run this notebook from a checkout "
        "of the skimage-workbooks repository"
    )


import imageio.v3 as iio

# 8-bit greyscale, read as float in 0-255, the range the paper works in.
FIXTURES = _fixtures()
panel = {k: iio.imread(FIXTURES / f"{name}.png").astype(float)
         for k, name in PANEL_FILES.items()}
grey = panel["b"]

Step 1 is eq. (1). It settles D3 on the paper’s own data. Panel (c) is the derivative down the rows. It has no relation to the derivative across them.

show_table(pd.DataFrame(
    [{"candidate for panel (c)": label,
      "correlation with the printed panel": f"{agreement(candidate, panel['c']):+.3f}"}
     for label, candidate in (
         ("d/dy, down the rows", ndi.gaussian_filter(grey, 1, order=(1, 0))),
         ("d/dx, across the columns", ndi.gaussian_filter(grey, 1, order=(0, 1))),
         ("the image itself, undifferentiated", grey))]),
    index="candidate for panel (c)")

Steps 2 to 5 then run as the paper specifies them: $\sigma \in \{1, 3, 5, 7\}$ , $\beta_1 = 0.5$ , $\beta_2 = 15$ , eq. (16) as written, and the 250 px area threshold.

gradient = ndi.gaussian_filter(grey, 1, order=(1, 0))                  # eq. (1)
ours_d = frangi(gradient, sigmas=(1, 3, 5, 7), beta=0.5, gamma=15,     # (2)-(15)
                black_ridges=True, mode="reflect")
ours_e = ours_d <= 0                                                   # eq. (16)
ours_f = remove_small_objects(ours_e, max_size=249, connectivity=2)    # 250 px

show_table(pd.DataFrame([
    {"stage": "(c) directional gradient",
     "agreement with the printed panel":
         f"correlation {agreement(gradient, panel['c']):+.3f}"},
    {"stage": "(d) vesselness",
     "agreement with the printed panel":
         f"correlation {agreement(ours_d, panel['d']):+.3f}"},
    {"stage": "(e) eq. (16) mask",
     "agreement with the printed panel":
         f"JSI {jaccard(ours_e, panel['e'] > 127):.3f}"},
    {"stage": "(f) after the area threshold",
     "agreement with the printed panel":
         f"JSI {jaccard(ours_f, panel['f'] > 127):.3f}"},
]), index="stage")

stages = [("(c) gradient", panel["c"], gradient),
          ("(d) vesselness", panel["d"], ours_d),
          ("(e) eq. (16) mask", panel["e"], ours_e.astype(float)),
          ("(f) area thresholded", panel["f"], ours_f.astype(float))]

fig, axes = plt.subplots(4, 2, figsize=(11, 5.6))
for (name, theirs, ours), (left, right) in zip(stages, axes):
    bare(left, f"paper, {name}")
    left.imshow(theirs, cmap="gray")
    bare(right, f"ours, {name}")
    right.imshow(ours, cmap="gray")

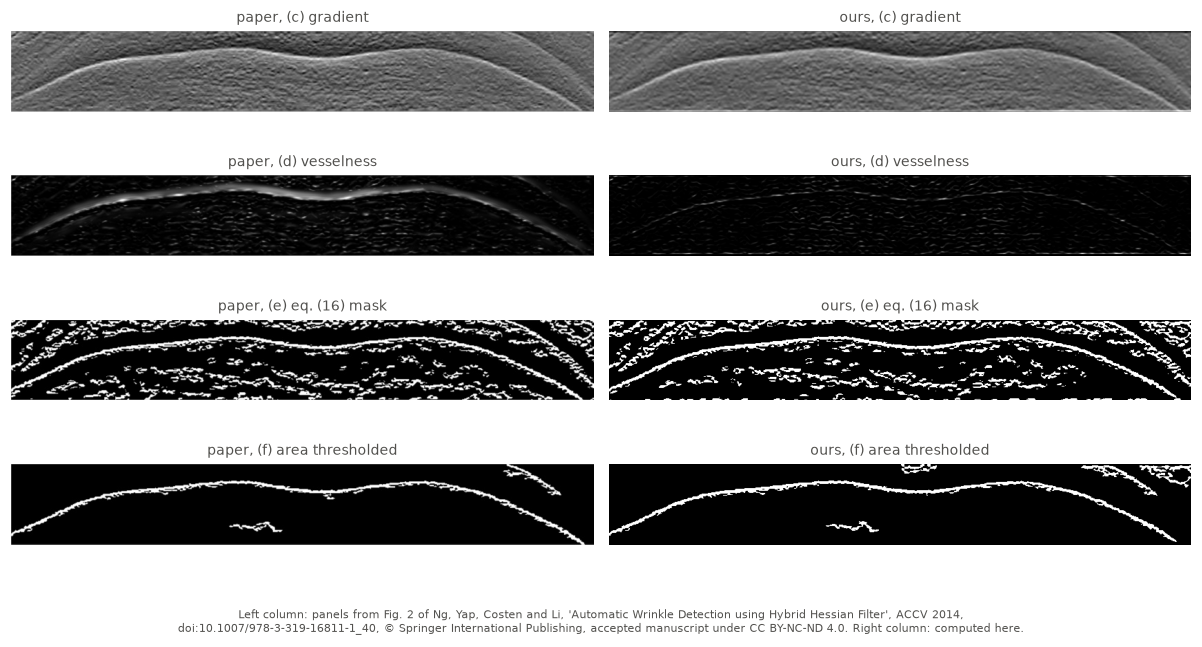

fig.text(0.5, -0.02,
         "Left column: panels from Fig. 2 of Ng, Yap, Costen and Li, "
         "'Automatic Wrinkle Detection using Hybrid Hessian Filter', ACCV 2014,\n"
         "doi:10.1007/978-3-319-16811-1_40, \u00a9 Springer International "
         "Publishing, accepted manuscript under CC BY-NC-ND 4.0. "
         "Right column: computed here.",
         ha="center", va="top", fontsize=7, color=MUTED)
fig.tight_layout()

Every stage recovers the wrinkle. The paper’s panel (c) carries more skin texture than ours, and its panel (e) holds more speckle. A likely reason is that the paper computed its panels at the resolution of the original crop, before the figure was reduced for printing, so its input held detail that the printed panel (b) no longer carries. This is a reading, not a result: nothing here measures the original resolution.

The ceiling for the last row is below 1. Panel (e) is a printed, compressed reproduction, and connected components are fragile to that. Measure the ceiling by running the last step on the paper’s own panel (e), against its own panel (f).

their_e = panel["e"] > 127
show_table(pd.DataFrame(
    [{"area threshold": f"{ms} px",
      "paper's (e) to paper's (f)":
          f"{jaccard(remove_small_objects(their_e, max_size=ms - 1, connectivity=2), panel['f'] > 127):.3f}",
      "ours (e) to paper's (f)":
          f"{jaccard(remove_small_objects(ours_e, max_size=ms - 1, connectivity=2), panel['f'] > 127):.3f}"}
     for ms in (100, 250, 400, 600)]), index="area threshold")

The paper’s own panels reach JSI 0.557 through this step. Our end-to-end result is 0.574. This reading of the pipeline reproduces the paper’s published result as closely as the paper’s own printed intermediate does.

The paper’s column peaks at its stated 250 px. That confirms both the number and the 8-connectivity. skimage has neither.

Our column keeps rising past 250 px. The paper reports the same tendency: HHF “increases the true positive rate, but it also generated false wrinkle”.

On the paper’s data, as on camera, the eq. (16) mask does not move with gamma.

show_table(pd.DataFrame(
    [{"gamma": str(g), "JSI against the paper's panel (e)":
      f"{jaccard(frangi(gradient, sigmas=(1, 3, 5, 7), beta=0.5, gamma=g, black_ridges=True, mode='reflect') <= 0, panel['e'] > 127):.4f}"}
     for g in (15, 15 / 255, 0.1, None)]), index="gamma")

Every gamma gives the same mask, because the sign of $\lambda_2$ decides it. gamma=15 does no harm inside the paper’s pipeline, where eq. (16) drops the magnitudes. It does harm in skimage, which returns them.

8. Why the tests pass¶

The assertion that covers the photographic case is:

a_black = crop(camera(), ((200, 212), (100, 312)))
assert_allclose(hessian(a_black, black_ridges=True, mode='reflect'),
                np.ones((100, 100)), atol=1 - 1e-7)

The tolerance is one minus a rounding constant. It admits any output whose every pixel is at least 1e-7. Run it on that input.

from skimage.util import crop

a_black = crop(ski.data.camera(), ((200, 212), (100, 312)))
deviation = np.abs(hessian(a_black, black_ridges=True, mode="reflect") - 1.0)
show_table(pd.DataFrame([
    {"quantity": "tolerance `atol=1 - 1e-7`", "value": f"{1 - 1e-7:.7f}"},
    {"quantity": "worst deviation from 1", "value": f"{deviation.max():.7f}"},
    {"quantity": "margin by which the assertion passes",
     "value": f"{(1 - 1e-7) - deviation.max():.2e}"},
]), index="quantity", floatfmt=".7g")

The assertion passes by about one part in a million. The clamp puts most pixels at exactly 1, so an output that is nearly all ones satisfies a test that asserts all ones. The test measures D1 and reads it as correct. Any repair that restores a ridge response makes this assertion fail.

A second assertion, assert_equal(hessian(zeros), ones), runs on an image with no structure. Every pixel is rejected, so every pixel is at the sentinel. It asserts D1.

9. Properties that ought to hold¶

A ridge filter answers more strongly on a ridge than on nothing at all. Test that on one dark bar on a flat field. The image holds one ridge and nothing else.

show_table(pd.DataFrame(
    [{"filter": name,
      "on the empty field": f"{out[FIELD].mean():.4f}",
      "along the bar": f"{out[SPINE].mean():.4f}",
      "stronger on the bar?": str(bool(out[SPINE].mean() > out[FIELD].mean()))}
     for name, out in (
         ("frangi", frangi(BAR, sigmas=SIGMAS, mode="reflect")),
         ("sato", sato(BAR, sigmas=SIGMAS, mode="reflect")),
         ("meijering", meijering(BAR, sigmas=SIGMAS, mode="reflect")),
         ("hessian", hessian(BAR, sigmas=SIGMAS, mode="reflect")))]),
    index="filter", floatfmt=".4f")

Three filters answer zero on the empty field and strongly on the bar. hessian answers 1.0000 on both. At full precision the empty field is exactly 1.0 and the bar is 0.999999995. The empty field outranks a perfect ridge by 5e-09, which is section 3.1 again.

10. Ways forward, and what each costs¶

The defects are independent. The paper decides most of the choices.

gamma should default to None, as frangi’s does. 15 is the paper’s $\beta_2$ for 0-255 data and is right for a uint8 image. Section 4 showed that it ties the answer to the dtype. gamma=None takes the constant from the image instead.

Eq. (16) must be completed or dropped. Leaving it half-written is what produces the sentinel.

shipped = hessian(PHOTO, sigmas=SIGMAS, mode="reflect")
candidates = {
    "drop the clamp, keep gamma=15":
        frangi(PHOTO, sigmas=SIGMAS, gamma=15, mode="reflect"),
    "drop the clamp, gamma=None":
        frangi(PHOTO, sigmas=SIGMAS, mode="reflect"),
    "complete eq. (16)":
        paper_eq16(frangi(PHOTO, sigmas=SIGMAS, gamma=15, mode="reflect")),
}
show_table(pd.DataFrame(
    [{"candidate": label,
      "pixels that change on camera": f"{(out != shipped).mean():.2%}",
      "on the empty field": f[FIELD].mean(),
      "along the bar": f[SPINE].mean()}
     for (label, out), f in zip(candidates.items(), (
         frangi(BAR, sigmas=SIGMAS, gamma=15, mode="reflect"),
         frangi(BAR, sigmas=SIGMAS, mode="reflect"),
         paper_eq16(frangi(BAR, sigmas=SIGMAS, gamma=15, mode="reflect"))))]),
    index="candidate", floatfmt=".9f")

Dropping the clamp changes 18.38% of the pixels of camera and restores the rank order. Completing eq. (16) gives the paper’s mask. That mask marks the empty field on this input, because the input is an image and not a gradient field. It is right inside the paper’s pipeline and wrong as a general ridge filter.

The clamp is one vectorised assignment. Its cost is below the run-to-run spread of the filter it follows, so speed does not choose between the candidates.

import timeit


def spread(call, repeats=5):
    """Best and worst of `repeats` timings, in seconds."""
    times = [timeit.timeit(call, number=1) for _ in range(repeats)]
    return min(times), max(times)


with_clamp = spread(lambda: hessian(PHOTO, sigmas=SIGMAS, mode="reflect"))
without = spread(
    lambda: frangi(PHOTO, sigmas=SIGMAS, gamma=15, mode="reflect"))
show_table(pd.DataFrame([
    {"call": "hessian, with the clamp",
     "best of 5": f"{with_clamp[0]:.3f} s", "worst of 5": f"{with_clamp[1]:.3f} s"},
    {"call": "frangi, the same work without it",
     "best of 5": f"{without[0]:.3f} s", "worst of 5": f"{without[1]:.3f} s"},
]), index="call")

11. What not to do¶

Do not rescale gamma and stop there. On a uint8 image gamma=15 is already the paper’s constant. Lowering it raises the scores toward 1, which moves them into the sentinel instead of away from it.

rows = []
for g in (15, 1.0, 15 / 255):
    out = hessian(BAR, sigmas=SIGMAS, gamma=g, mode="reflect")
    bar = out[SPINE].mean()
    rows.append({"setting": f"gamma = {g:g}",
                 "the empty field": f"{out[FIELD].mean():.1f}, the sentinel",
                 "gap between the bar and the sentinel": 1 - bar})
show_table(pd.DataFrame(rows), index="setting", floatfmt=".2e")

At gamma=15 a perfect ridge sits 5e-09 below the sentinel. At gamma=1 the gap reaches 0: the ridge and the empty field hold the same float64 value, and nothing downstream can tell them apart.

Do not delete the clamp and call hessian repaired. With the clamp gone and gamma following frangi, hessian runs the same call with the same arguments as frangi.

print("clamp dropped, output identical to frangi(gamma=15):",
      np.array_equal(candidates["drop the clamp, keep gamma=15"],
                     frangi(PHOTO, sigmas=SIGMAS, gamma=15, mode="reflect")))

clamp dropped, output identical to frangi(gamma=15): True

A repair of that shape turns a documented filter into an alias, without saying so. The step that makes HHF a distinct filter is the directional gradient of section 5. A faithful port is:

def hybrid_hessian(image, axis=0, sigmas=(1, 3, 5, 7), beta=0.5, gamma=15,
                   min_size=250):
    order = tuple(1 if i == axis else 0 for i in range(image.ndim))
    gradient = ndi.gaussian_filter(image.astype(float), 1, order=order)
    ridge = frangi(gradient, sigmas=sigmas, beta=beta, gamma=gamma)
    return remove_small_objects(ridge <= 0, max_size=min_size - 1,
                                connectivity=2)

It returns a boolean mask. It takes an orientation that the present signature has no room for. Its gamma suits 0-255 input only. Its min_size follows the image resolution and has no safe default. It is a new function, not a repair of this one.

12. Summary¶

skimage.filters.hessian is a partial port. Its constants come from the paper. The pipeline around them does not.

	defect	evidence	weight
D1	eq. (16) is implemented by half: the `1` branch without the `0`	$V < 1$ by §3.1, and the clamp writes 1, so the sentinel is above every score; 15 of 15 corpus images	fatal
D2	`gamma=15` is absolute, so the answer follows the input dtype	uint8 and float answers correlate at 0.73; the other three filters are unaffected	severe, and `frangi`’s `gamma=None` already fixes it
D3	eq. (1), the directional gradient, is absent	every equation from (2) on is written in $\partial I/\partial y$ ; the responses correlate at 0.19; §7 reproduces Fig. 2 only with the gradient in place	it is a different filter
D4	the 250 px area threshold is absent	§7 finds the paper’s own JSI peak at 250 px	the mask is unusable without it
D5	the test asserts the broken output	`atol=1 - 1e-7` passes by 1.28e-06, because D1 puts most pixels at 1	why it survived

hessian computes step 3 of a five-step pipeline on the wrong input, keeps half of step 4, drops step 5, and returns the result under a docstring that describes none of it.

Limits¶

The corpus is 15 images from skimage.data, decimated by 2, at the default sigmas. There is no 3-D case. There is no forehead imagery of the kind the paper targets.

§3.1 proves that the sentinel is above every score. That proof covers eq. (14) as the paper writes it and as frangi implements it. It does not cover other vesselness formulations.

§7 confirms this reading of the pipeline. It does not confirm the paper’s headline accuracy. Panel (f) is the paper’s output, not annotated truth, so agreement with it shows that the implementation is faithful, not that the algorithm is accurate. An independent evaluation that obtained the authors’ own code (Osman et al. 2020) reports a mean JSI of 31.69% for HHF on FERET, against the 75.67% reported in the paper.

§7 also rests on one image, reproduced through print and JPEG at 845x117, where the paper’s $\sigma$ and its resolution-dependent 250 px threshold were set for 1600x1200 originals.

Eq. (14) sets the score to zero when $\lambda_2 < 0$ . The surrounding text says that $\lambda_2 < 0$ marks the data of interest. The paper contradicts itself on that sign, and its figures are the only tiebreak. Nothing above depends on it: D1 concerns eq. (16), whichever sign eq. (14) uses.

Which build this measures¶

hessian delegates to frangi, so it inherits whatever that function does. This build restores the sigma**2 factor of issue #7711; see on_frangi.md. That affects D2 only, and in the direction that makes a release worse: $\sigma^2 \ge 1$ at every default scale, so $\mathcal{S}$ here is at least as large as in a release, and the gate at gamma=15 is at least as open. D1, D3, D4 and D5 do not depend on the build.

print(f"scikit-image {ski.__version__}")
print(f"from {ski.__file__}")

scikit-image 0.26.1rc0.dev0
from /opt/hostedtoolcache/Python/3.13.15/x64/lib/python3.13/site-packages/skimage/__init__.py

References¶

Ng, C.-C., Yap, M. H., Costen, N., & Li, B. (2015). Automatic Wrinkle Detection Using Hybrid Hessian Filter. In Computer Vision – ACCV 2014 (pp. 609–622). Springer International Publishing. 10.1007/978-3-319-16811-1_40
Elbashir, R. M., & Hoon Yap, M. (2020). Evaluation of Automatic Facial Wrinkle Detection Algorithms. Journal of Imaging, 6(4), 17. 10.3390/jimaging6040017
